Plan 684
$795.00
1Beds
1.0Baths
1Floors
684Sq Ft
1Garage
41'-0"Width
32'-0"Depth
Plan 684 proves that a compact home does not have to feel basic or compromised. This thoughtfully designed 684 sq. ft. modern cabin house plan combines efficient one-level living, dramatic vaulted ceilings, substantial covered outdoor space, and the convenience of an attached one-car garage.

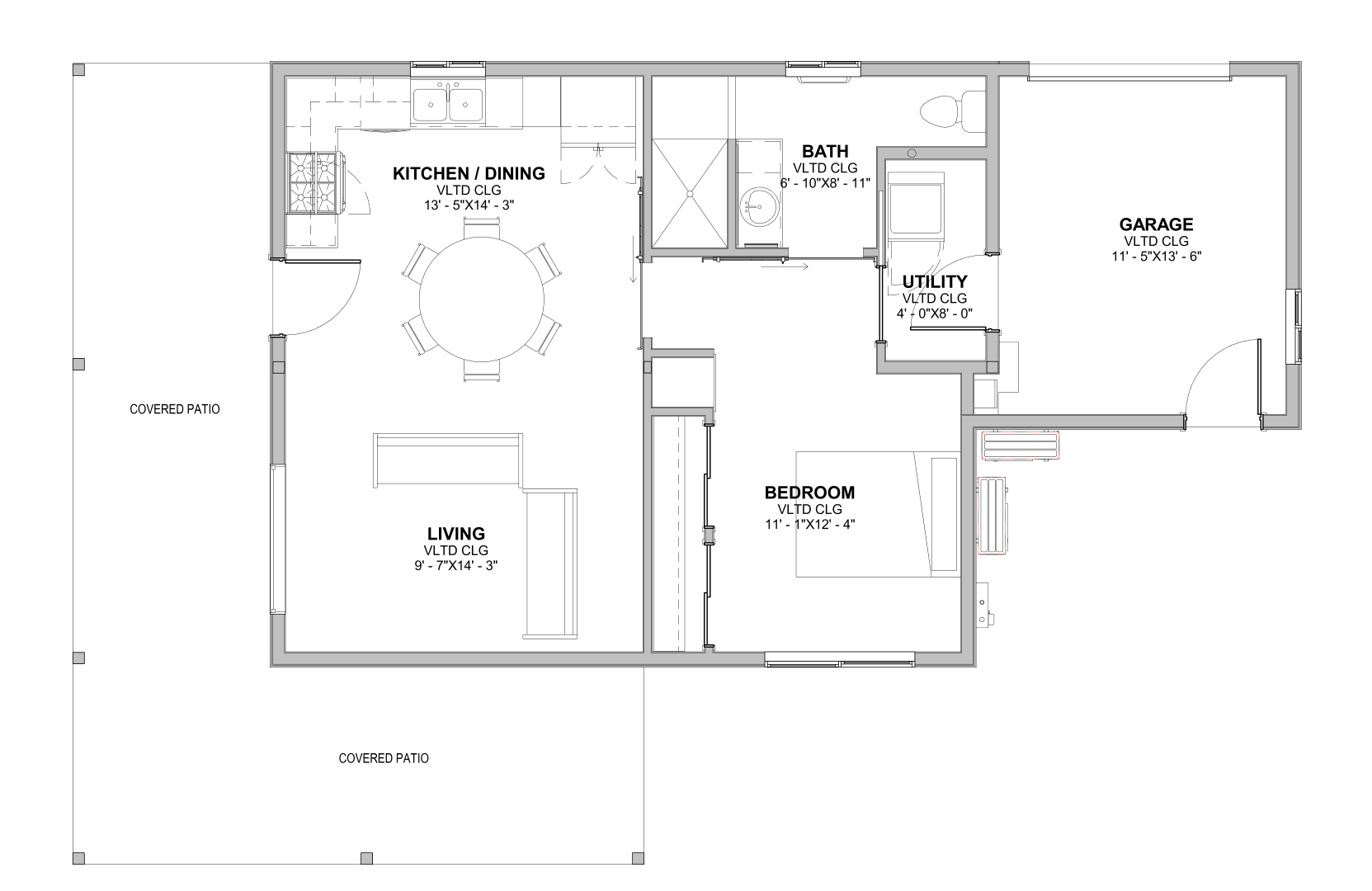

The open kitchen, dining, and living area forms the heart of the home, with a large front window bringing natural light into the main living space. The adjoining covered patio expands the usable living area outdoors and creates an inviting place for relaxing, dining, or entertaining.
The private bedroom includes generous closet storage, while the full bathroom features a walk-in shower, built-in linen storage, and efficient access from the main living areas. A dedicated utility room provides space for laundry equipment, mechanical systems, and additional household storage.

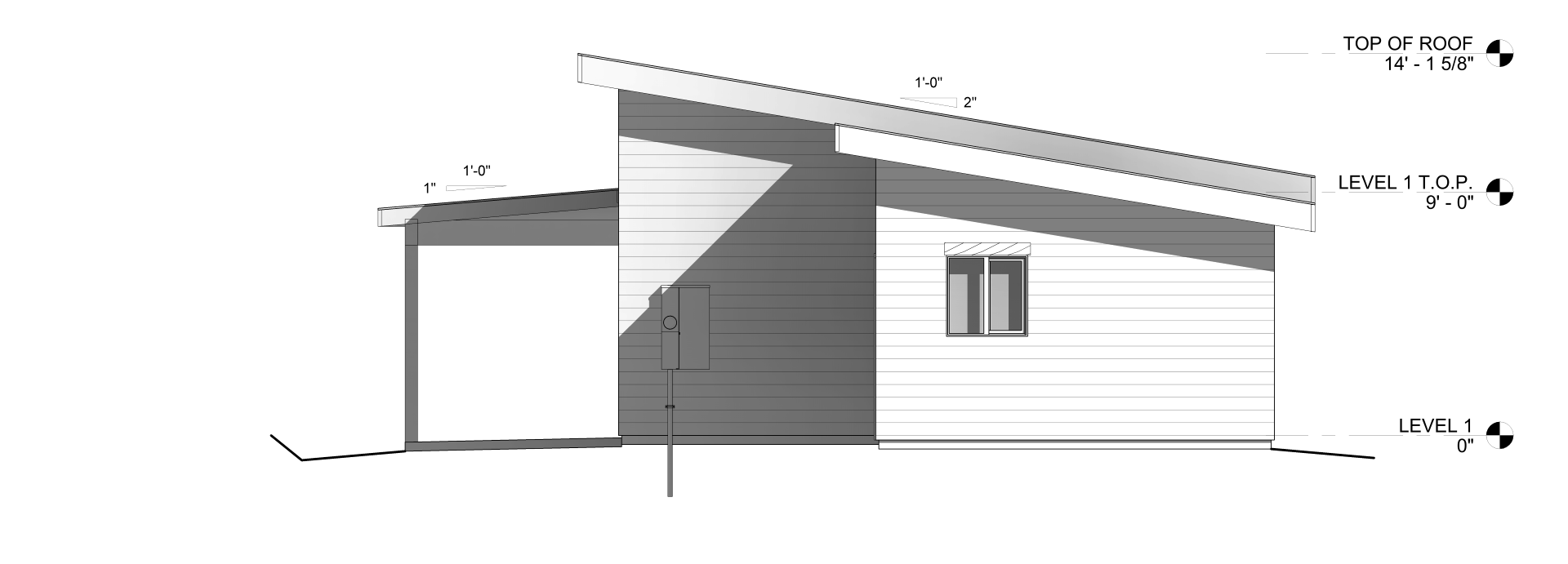

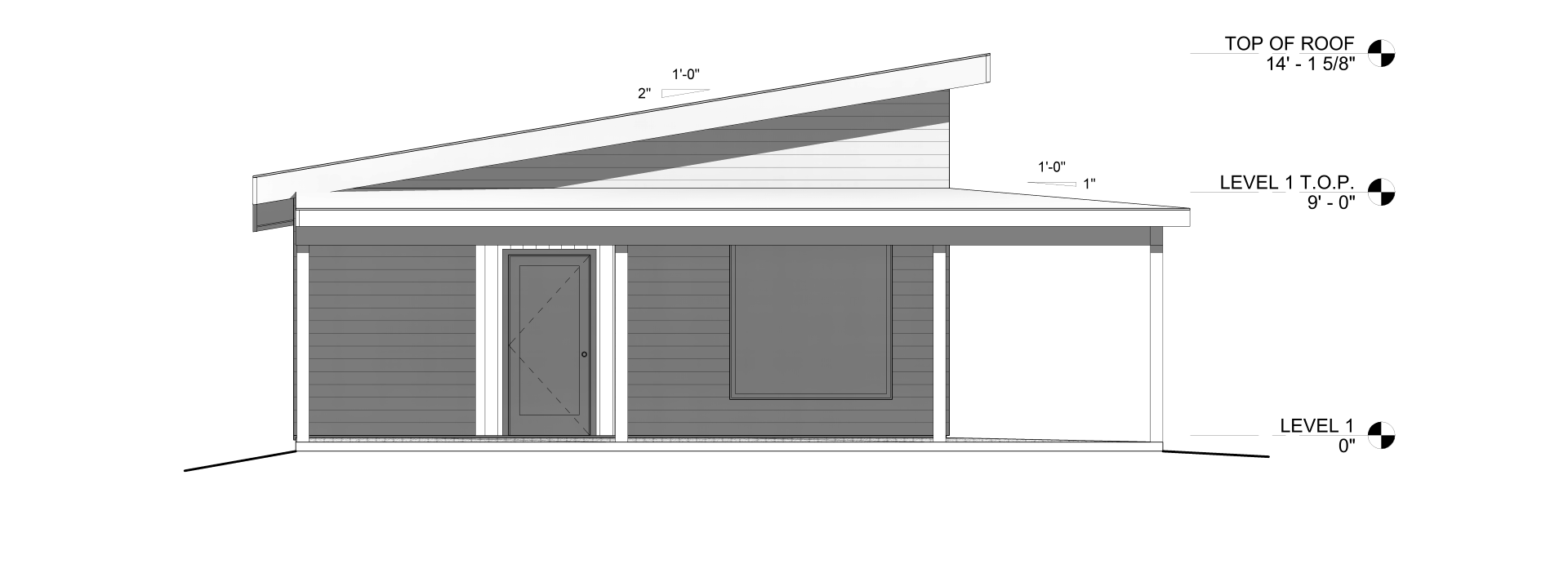

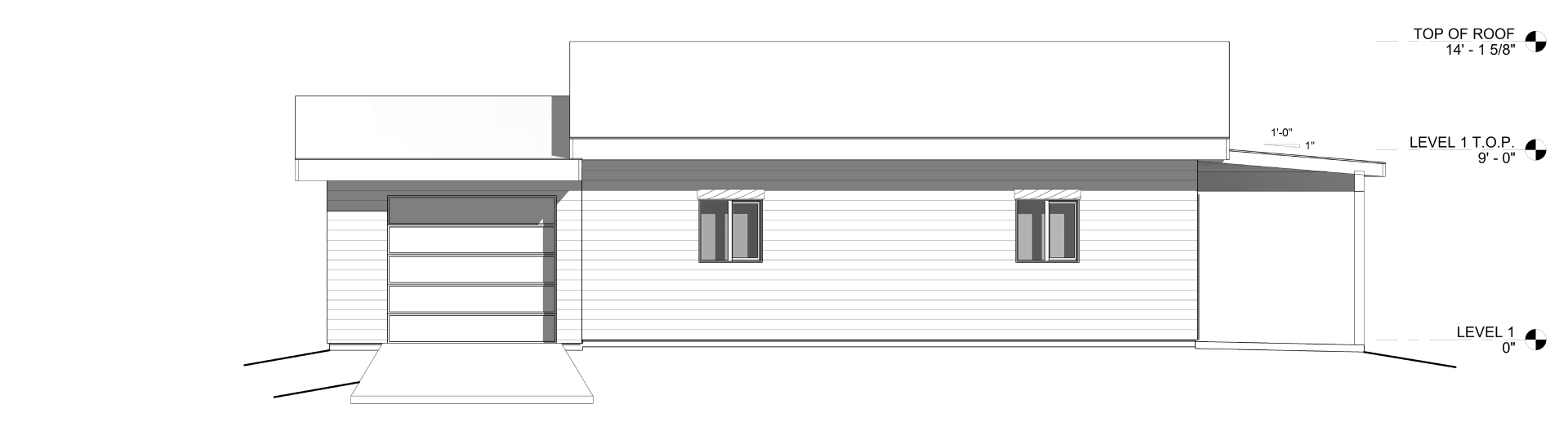

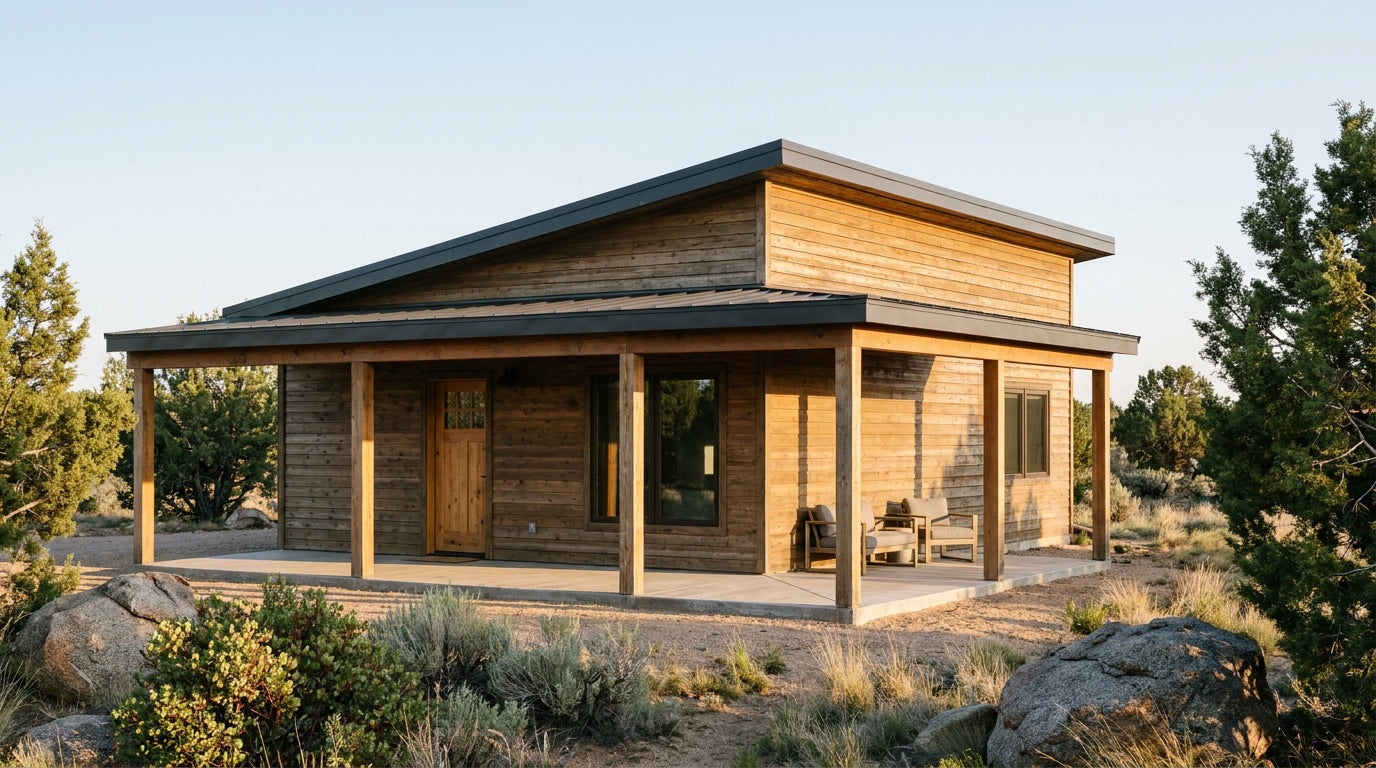

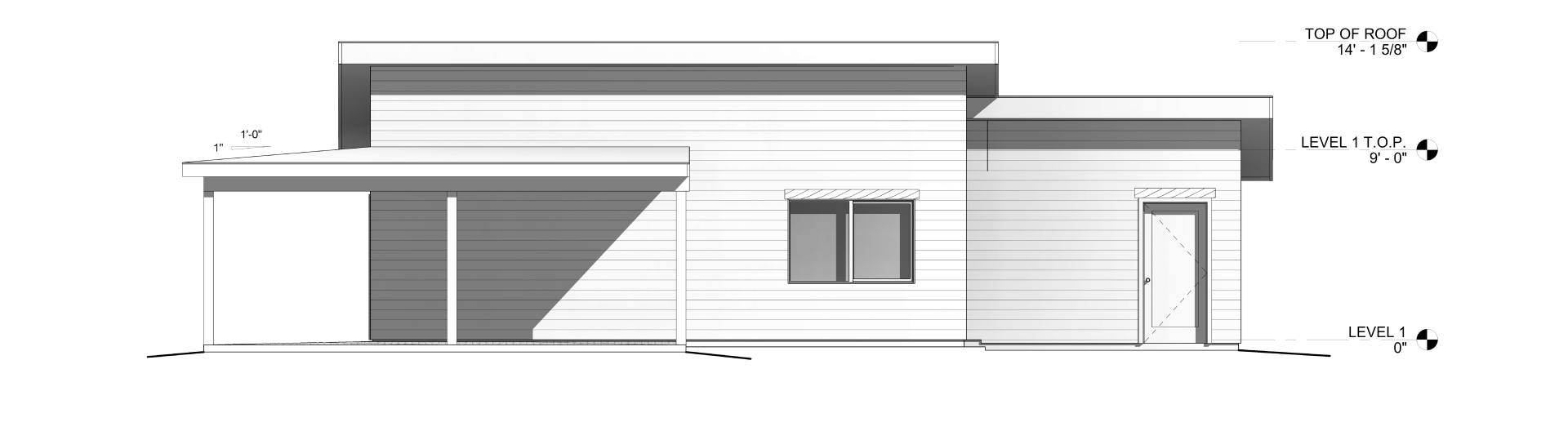

Outside, the asymmetrical shed-roof design, metal roofing, horizontal siding, and exposed wood accents give the home a clean modern rustic cabin appearance that works equally well in wooded, mountain, rural, or contemporary residential settings.
With its compact footprint and complete construction-document package, Plan 684 is well suited for use as a small primary residence, guest house, vacation cabin, retirement home, or accessory dwelling unit where permitted by local zoning.
Unlike stripped-down conceptual or tiny-home drawing packages, this plan includes detailed architectural, electrical, foundation, roof-framing, and structural information intended to help qualified construction professionals move the project toward permitting and construction.
⭐ Key Features
📋 Plan Specifications
📦 What is Included
Important Note
Plans may need to be reviewed, modified, engineered, or stamped by a licensed professional to meet local building department, site conditions, wind, snow, seismic, soil, and energy-code requirements.
These construction plans are intended as a technical guide for professional contractors and are not step-by-step building instructions. Local permit requirements vary by jurisdiction. Additional engineering, site plans, HVAC design, plumbing design, energy calculations, truss engineering, or other documentation may be required by your local building department or authority having jurisdiction.
Purchase includes a limited license for one-time construction use only by the original purchaser. Plans may not be copied, resold, redistributed, uploaded, shared, modified for resale, or reused for additional projects without written permission from CenterPoint Drafting, LLC.
