Plan 1493
$795.00
3Beds
2.0Baths
1Floors
1493Sq Ft
2Garage
55Width
55Depth

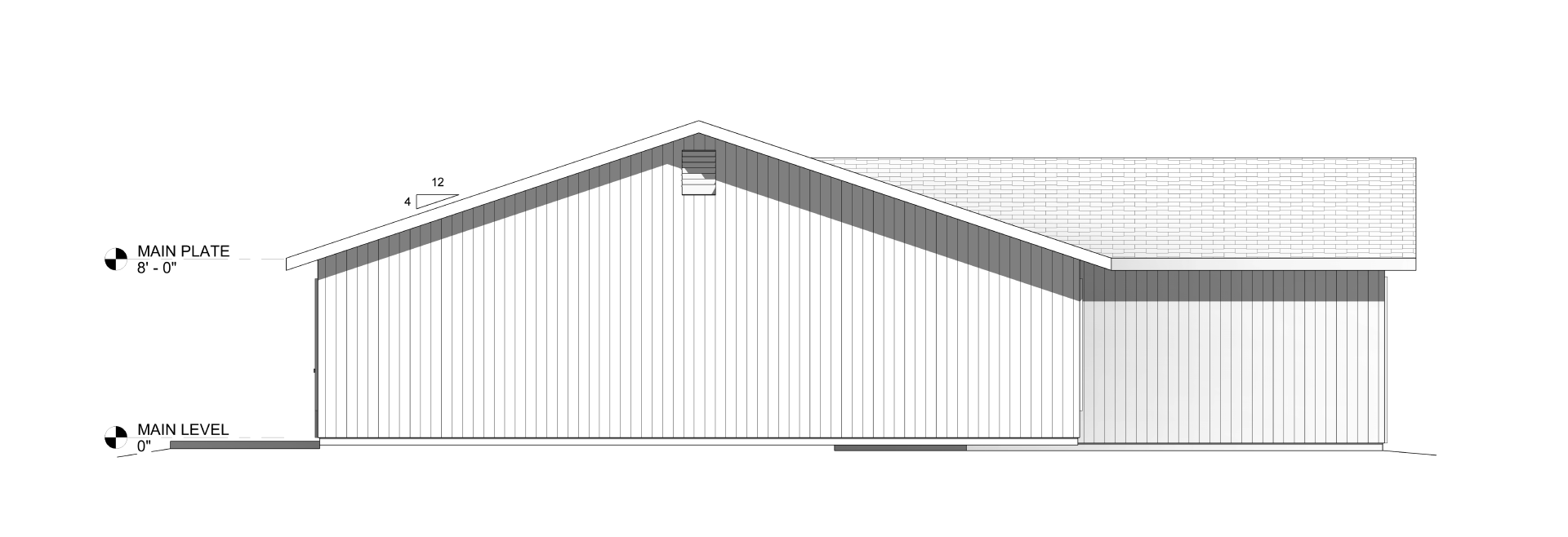

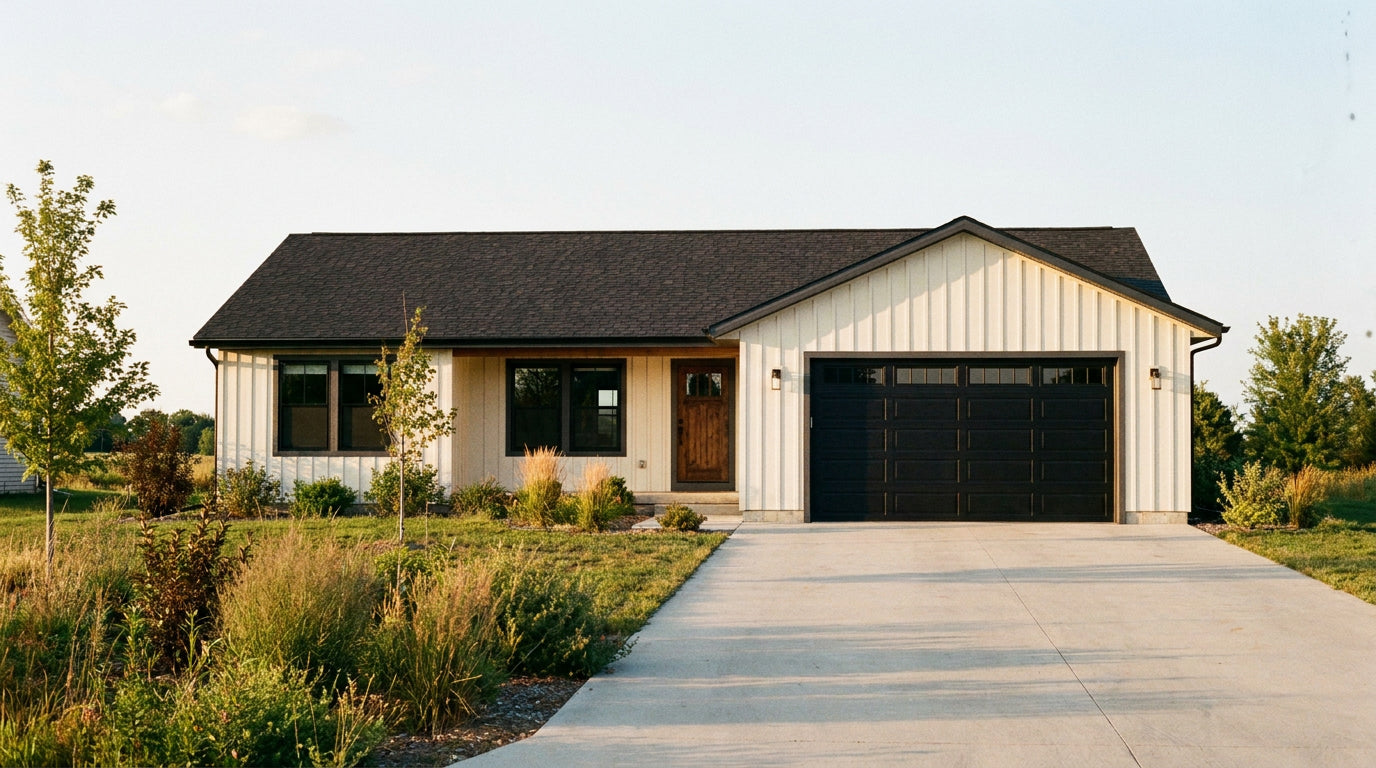

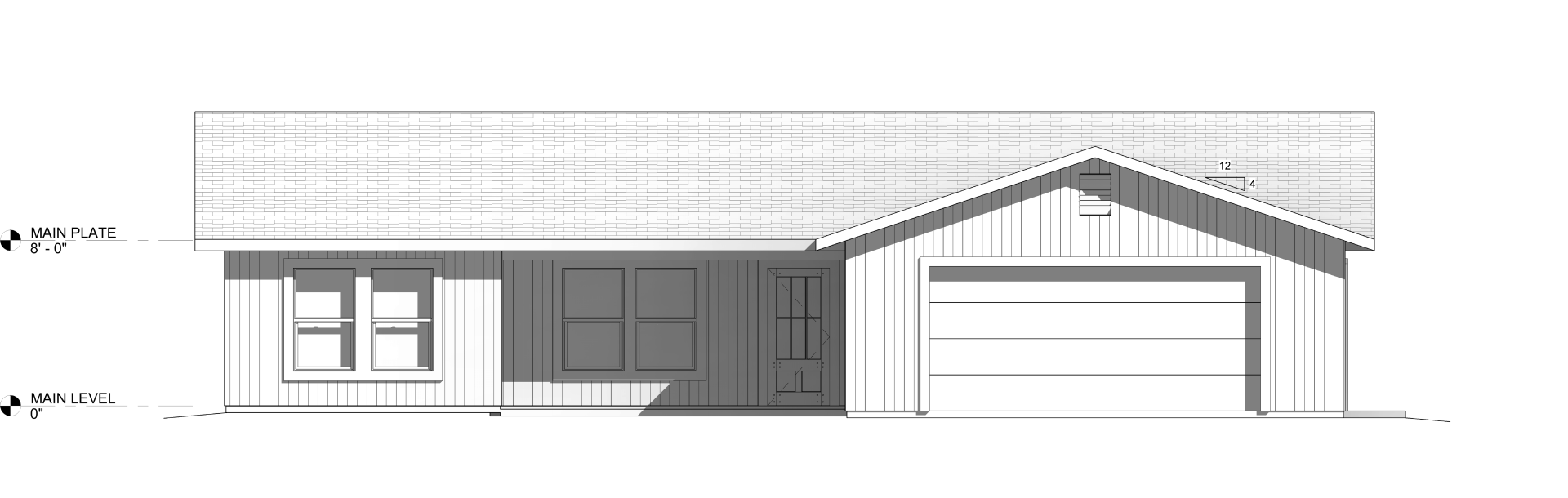

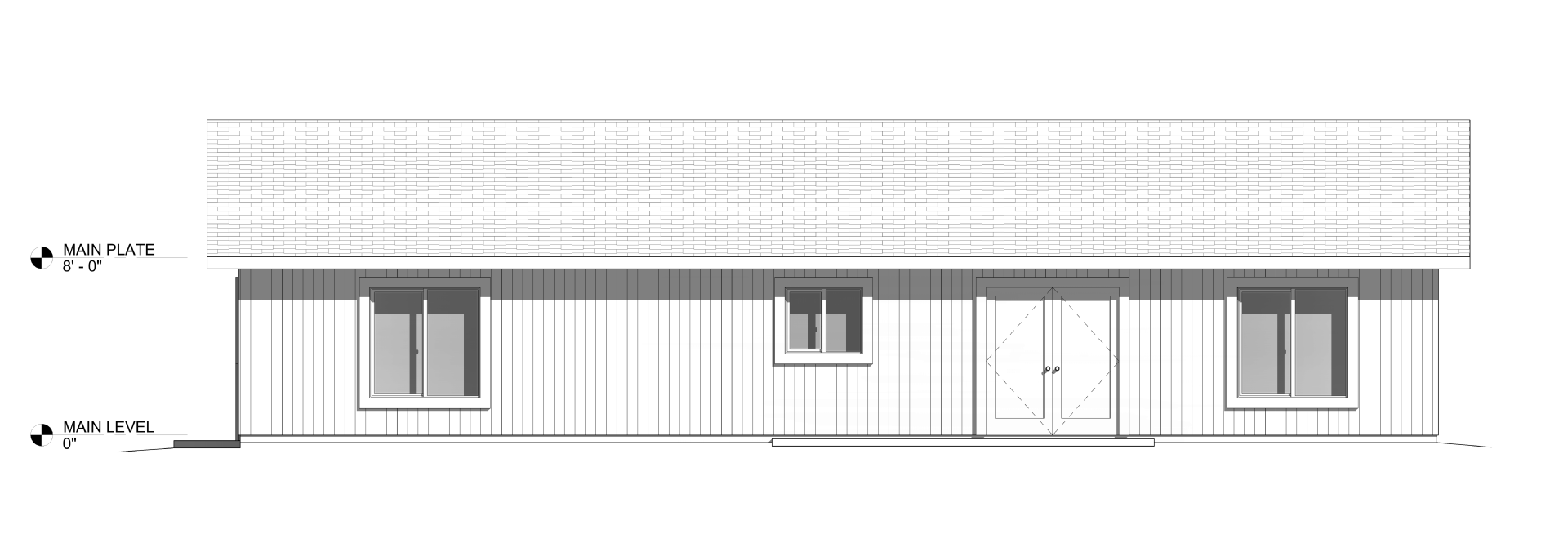

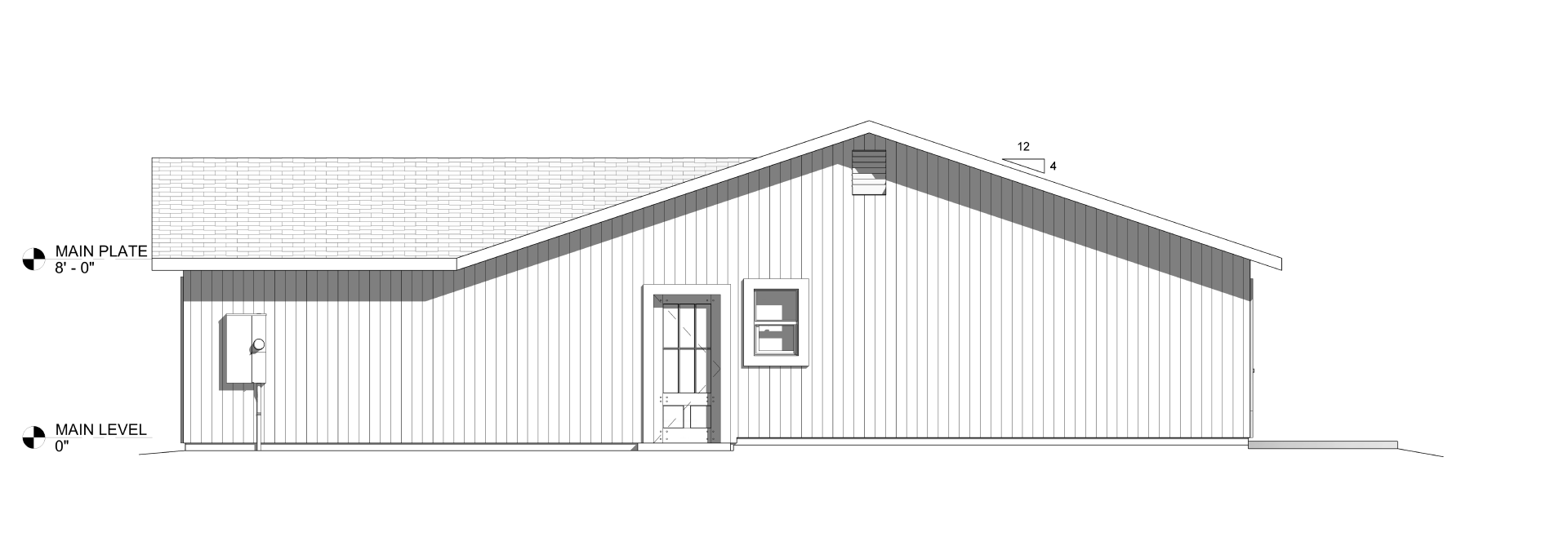

Plan 1493 is a compact and efficient 3 bedroom, 2 bathroom modern farmhouse ranch house plan with 1,493 sq. ft. of livable space and an attached 587 sq. ft. two-car garage. This single-level design combines a simple, buildable footprint with a clean farmhouse exterior, vertical siding, dark trim accents, and a front-facing garage gable.

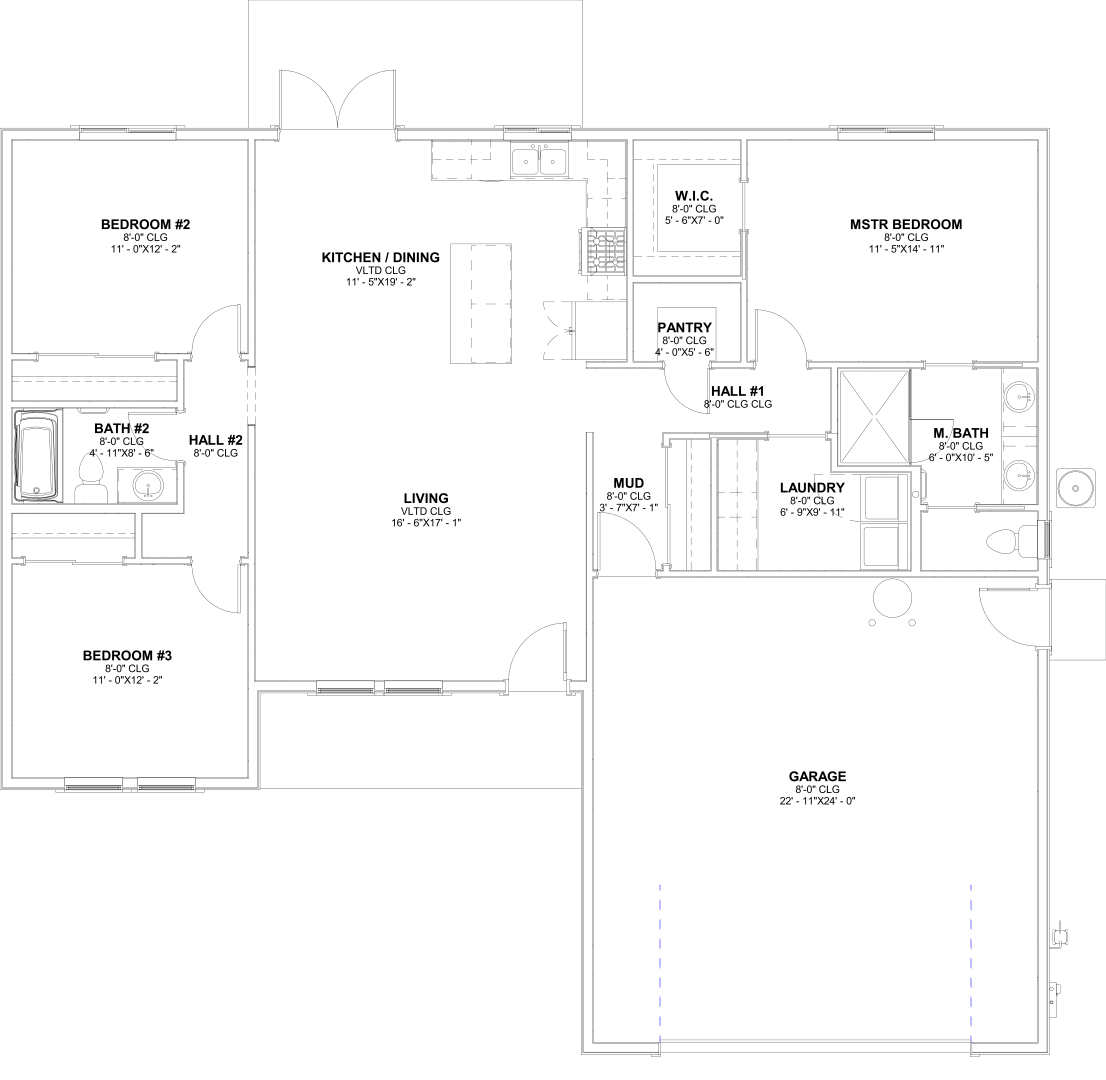

Inside, the home features an open kitchen, dining, and living area with vaulted ceilings, giving the main living space a larger and more comfortable feel. The kitchen includes an island, pantry, and direct connection to the dining area, making the layout practical for everyday living.
The private primary suite includes a walk-in closet and full bathroom, while Bedrooms 2 and 3 are positioned on the opposite side of the home near the second bathroom. A mudroom, laundry room, and direct garage access help make the plan functional for families, empty nesters, or anyone wanting an efficient one-level home.
Important Note
Plans may need to be reviewed, modified, engineered, or stamped by a licensed professional to meet local building department, site conditions, wind, snow, seismic, soil, and energy-code requirements.
These construction plans are intended as a technical guide for professional contractors and are not step-by-step building instructions. Local permit requirements vary by jurisdiction. Additional engineering, site plans, HVAC design, plumbing design, energy calculations, truss engineering, or other documentation may be required by your local building department or authority having jurisdiction.
Purchase includes a limited license for one-time construction use only by the original purchaser. Plans may not be copied, resold, redistributed, uploaded, shared, modified for resale, or reused for additional projects without written permission from CenterPoint Drafting, LLC.
