Plan 2465

$1,295.00
🛏3Beds
🚿3.5Baths
🏠1Floors
📐2465Sq Ft
🚗3Garage

Modern Mountain Craftsman Living With a Private Guest Wing

Plan 2465 is a thoughtfully designed single-story Modern Mountain Craftsman home that combines dramatic curb appeal with an exceptionally functional floor plan. Offering 2,465 square feet of livable space, this design includes three bedrooms, three-and-one-half bathrooms, a dedicated home office, flexible guest lounge and an expansive three-car garage.

The center of the home features an open kitchen, dining area and vaulted living room designed for comfortable everyday living and entertaining. A large kitchen island provides generous workspace and seating, while the walk-in pantry keeps appliances and food storage organized. Wide sliding glass doors connect the living area to the covered rear patio, where an outdoor fireplace creates a natural extension of the home.

The private primary suite occupies its own side of the floor plan and includes a vaulted bedroom, spacious walk-in closet and a luxurious bathroom with dual vanities, freestanding tub and separate walk-in shower.

On the opposite side of the home, two secondary bedrooms are served by two full bathrooms and a separate lounge with a wet bar. This flexible arrangement works especially well for overnight guests, older children, extended family or multigenerational living.

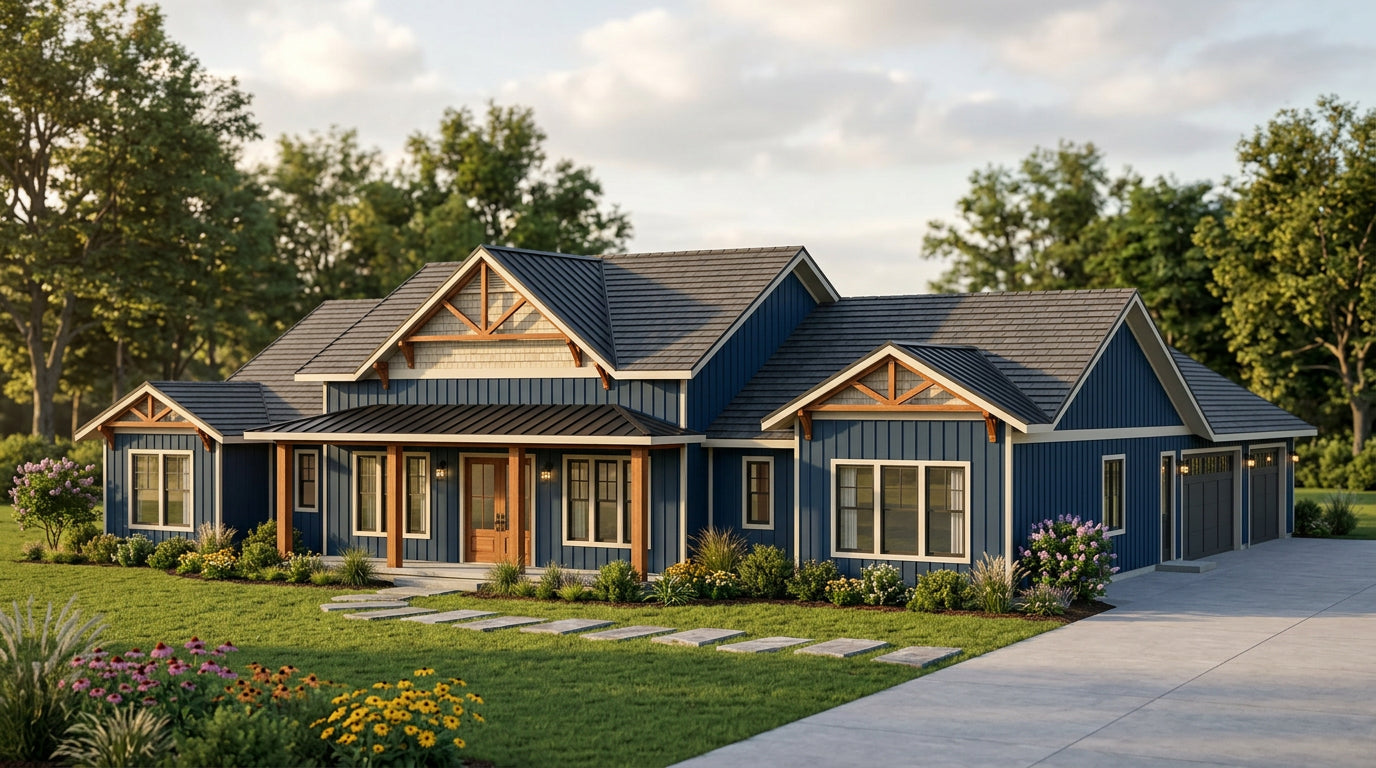

Additional features include a dedicated office near the front entry, large laundry room, mudroom, powder bathroom, generous storage and a 939-square-foot three-car garage. The exterior combines board-and-batten siding, shake accents, stone veneer, decorative timber trusses and a mix of concrete tile and standing-seam metal roofing for a distinctive Mountain Craftsman appearance.

    ⭐ Key Features

    Key Features

    • Split-bedroom floor plan for increased privacy
    • Open kitchen, dining and vaulted living room
    • Large kitchen island and walk-in pantry
    • Private primary suite with freestanding tub and walk-in shower
    • Two secondary bedrooms with two additional full bathrooms
    • Guest lounge with built-in wet bar
    • Dedicated home office
    • Large laundry room and separate mudroom
    • Covered front porch and rear outdoor living area
    • Exterior wood-burning fireplace
    • Oversized three-car garage
    • Generator hookup and transfer-switch rough-in shown
    • Modern Mountain Craftsman exterior detailing

    📋 Plan Specifications

    Plan Specifications

    • Living Area: 2,465 sq. ft.
    • Bedrooms: 3
    • Bathrooms: 3 full and 1 half
    • Stories: 1
    • Garage: 3 cars / 939 sq. ft.
    • Covered Porches and Patios: 607 sq. ft.
    • Exterior Walls: 2x6 construction
    • Ceilings: 10-foot ceilings with vaulted living room and primary bedroom

    📦 What is Included

    What Is Included

    PDF Single-Build Package

    A complete 14-sheet digital construction drawing set, including:

    • Cover sheet and project information
    • Energy-efficiency specifications

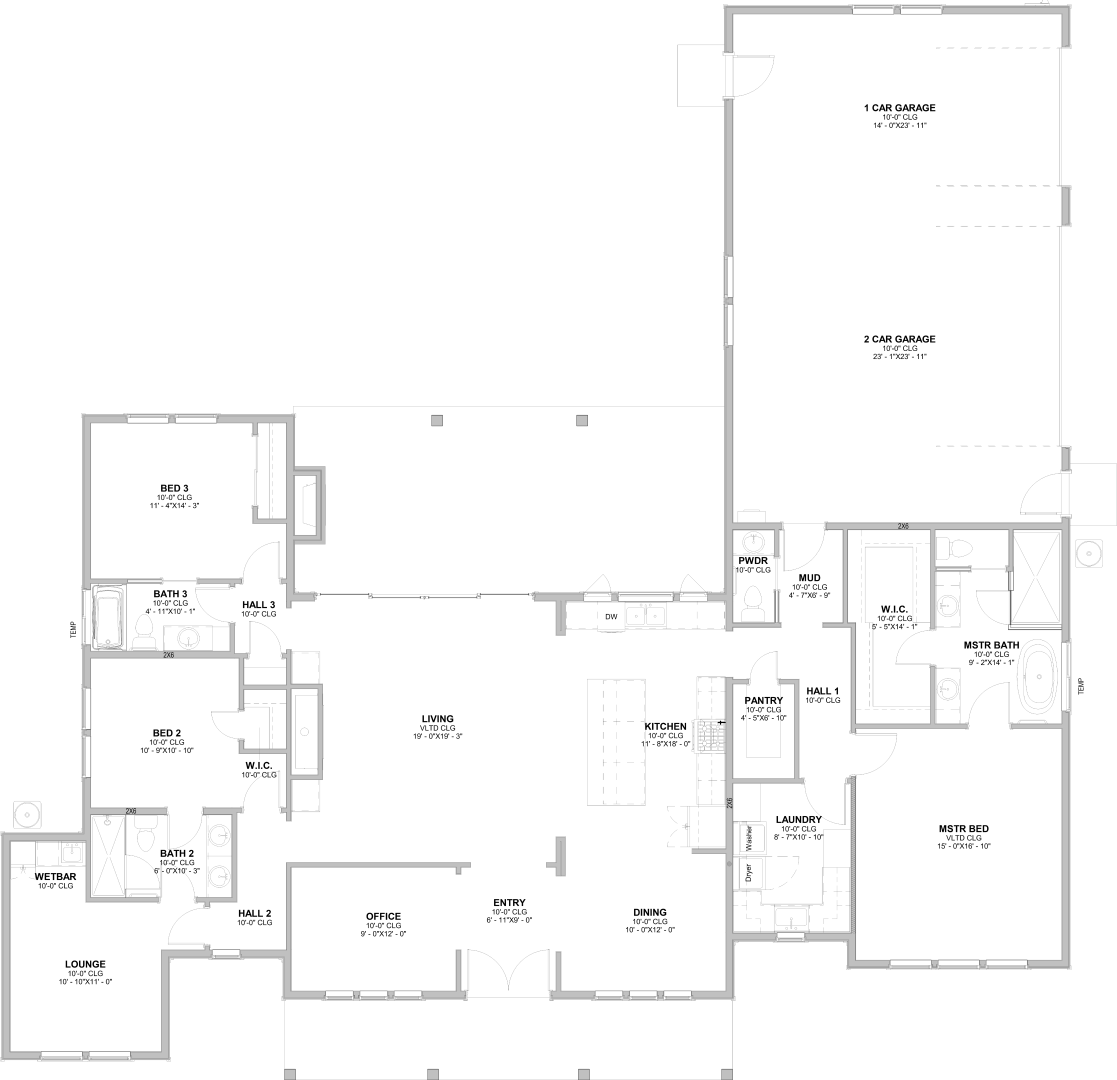

    • Fully dimensioned floor plan
    • Roof plan

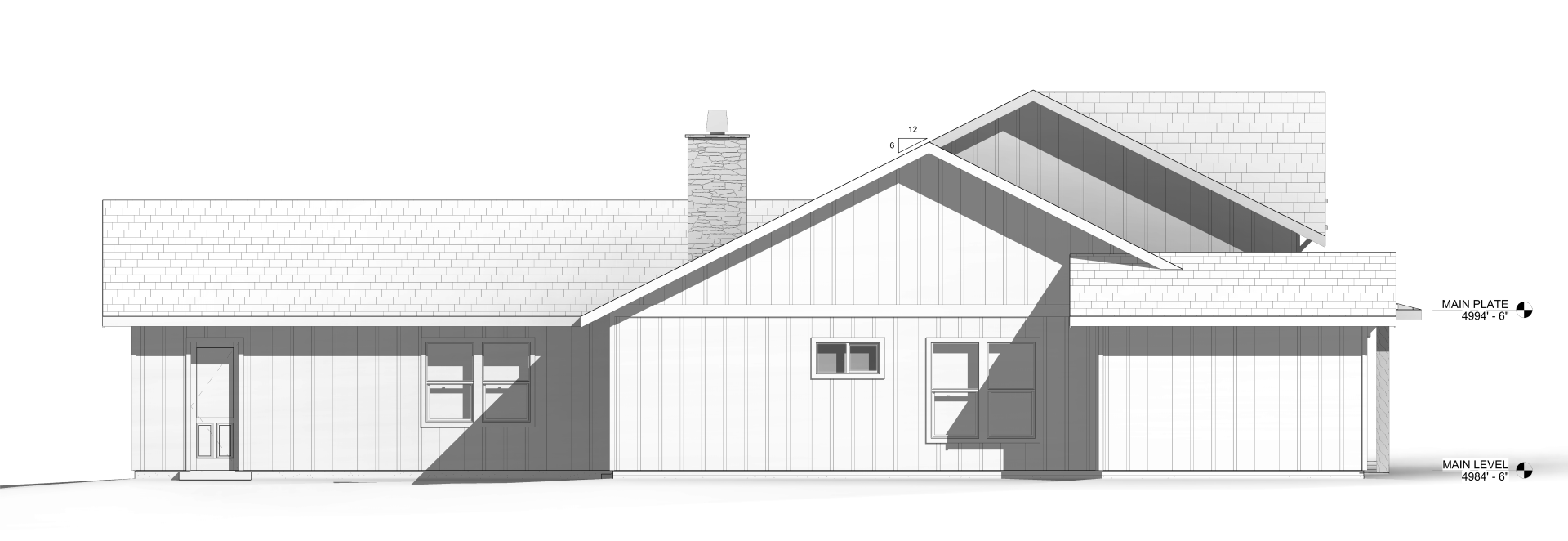

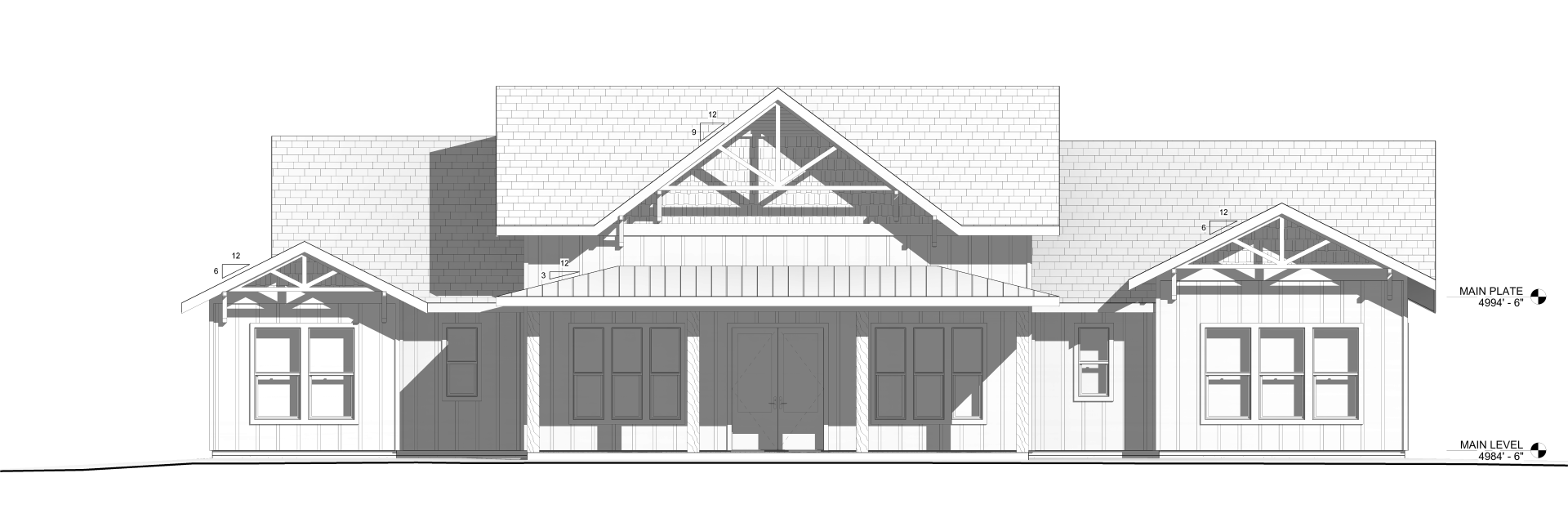

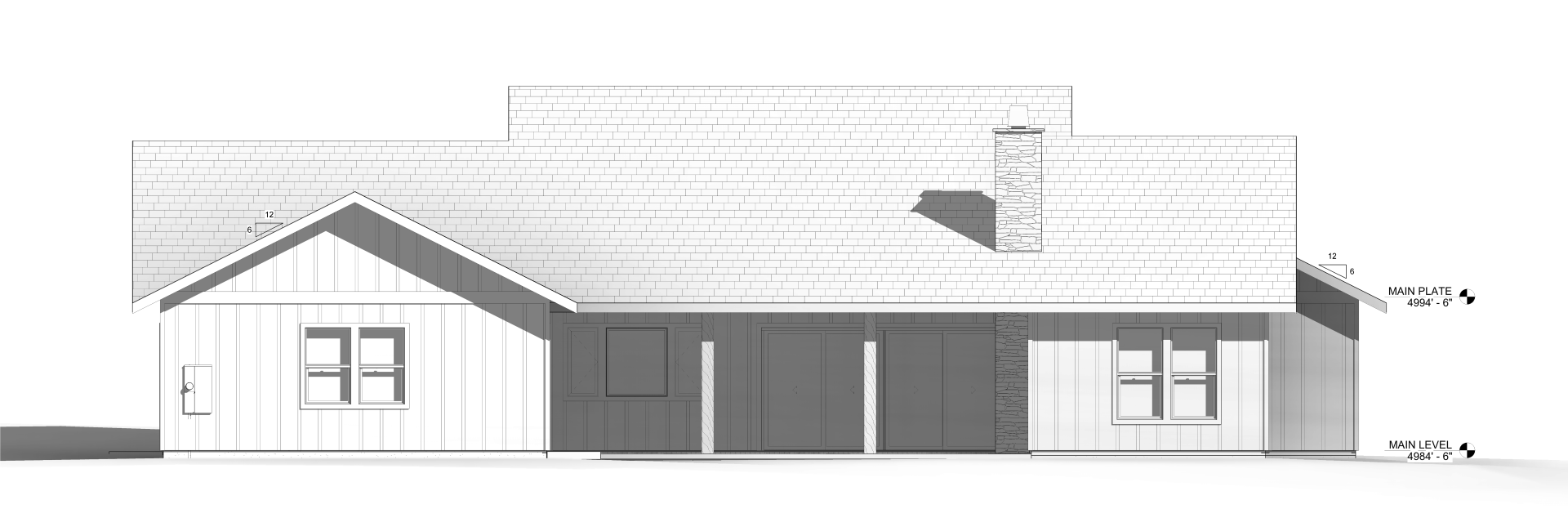

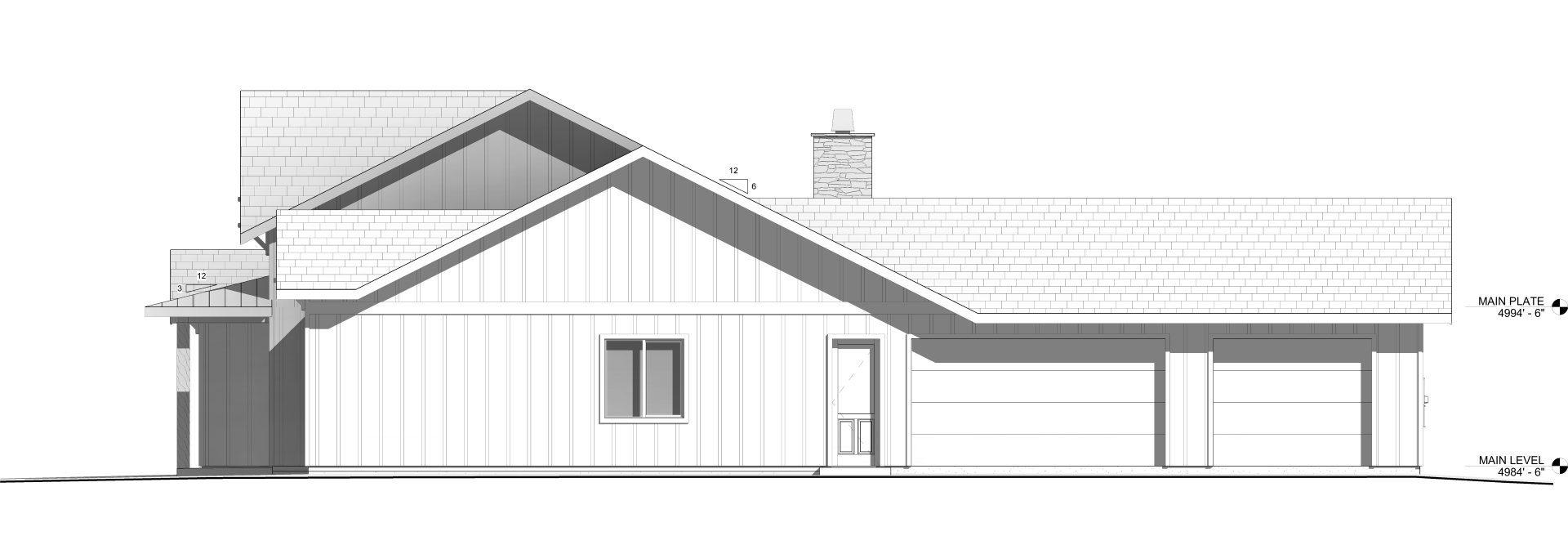

    • All four exterior elevations
    • Building cross sections
    • Electrical plan
    • Gas plumbing isometric
    • Foundation and slab plan
    • Roof framing plan
    • Shear-wall, hold-down and structural schedules
    • Foundation, framing and structural details

    PDF + CAD Single-Build Package

    Includes the complete PDF construction drawing set plus the editable CAD drawing files for use by a qualified designer, engineer, builder or drafting professional.

    Important Note
    Plans may need to be reviewed, modified, engineered, or stamped by a licensed professional to meet local building department, site conditions, wind, snow, seismic, soil, and energy-code requirements.

    These construction plans are intended as a technical guide for professional contractors and are not step-by-step building instructions. Local permit requirements vary by jurisdiction. Additional engineering, site plans, HVAC design, plumbing design, energy calculations, truss engineering, or other documentation may be required by your local building department or authority having jurisdiction.

    Purchase includes a limited license for one-time construction use only by the original purchaser. Plans may not be copied, resold, redistributed, uploaded, shared, modified for resale, or reused for additional projects without written permission from CenterPoint Drafting, LLC.
