Plan 5482
$2,495.00
4Beds
5.0Baths
2Floors
5482Sq Ft
4Garage
90'-8"Width
110'-8"Depth
A commanding Spanish Colonial estate designed for luxury family living, large-scale entertaining, and seamless indoor-outdoor living.

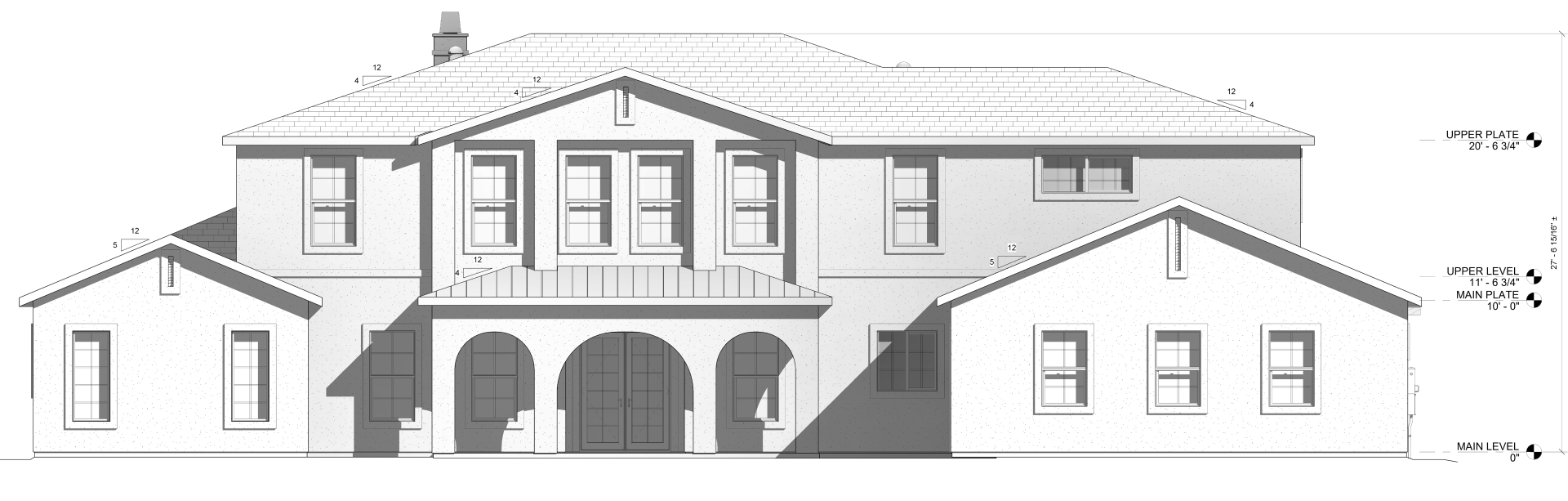

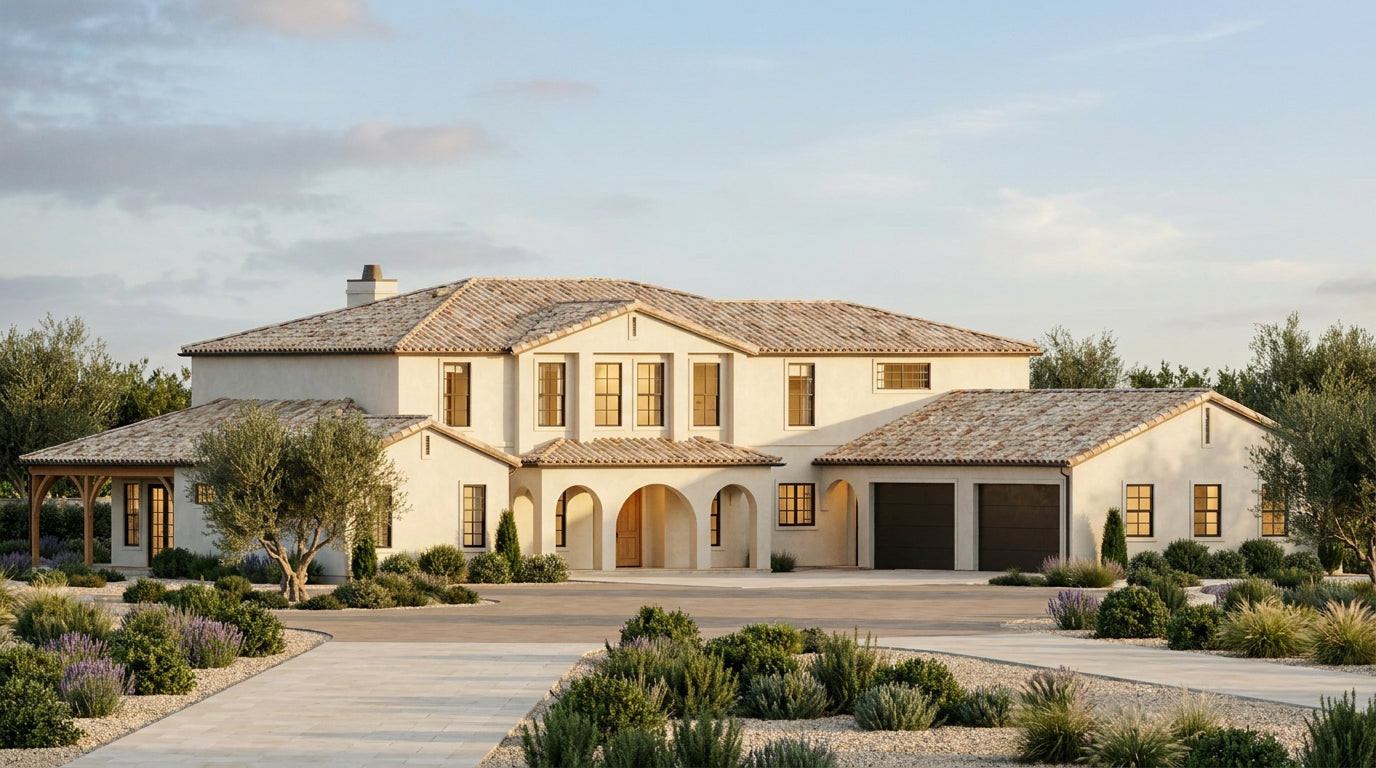

Plan 5482 offers 5,482 square feet of living space across two levels, with 5 bedrooms, 5 full bathrooms, 1 half bathroom, and an attached four-car garage. The exterior combines smooth stucco walls, arched openings, deep roof overhangs, decorative wood detailing, and a tile roof to create a timeless Spanish Colonial and Mediterranean-inspired appearance.

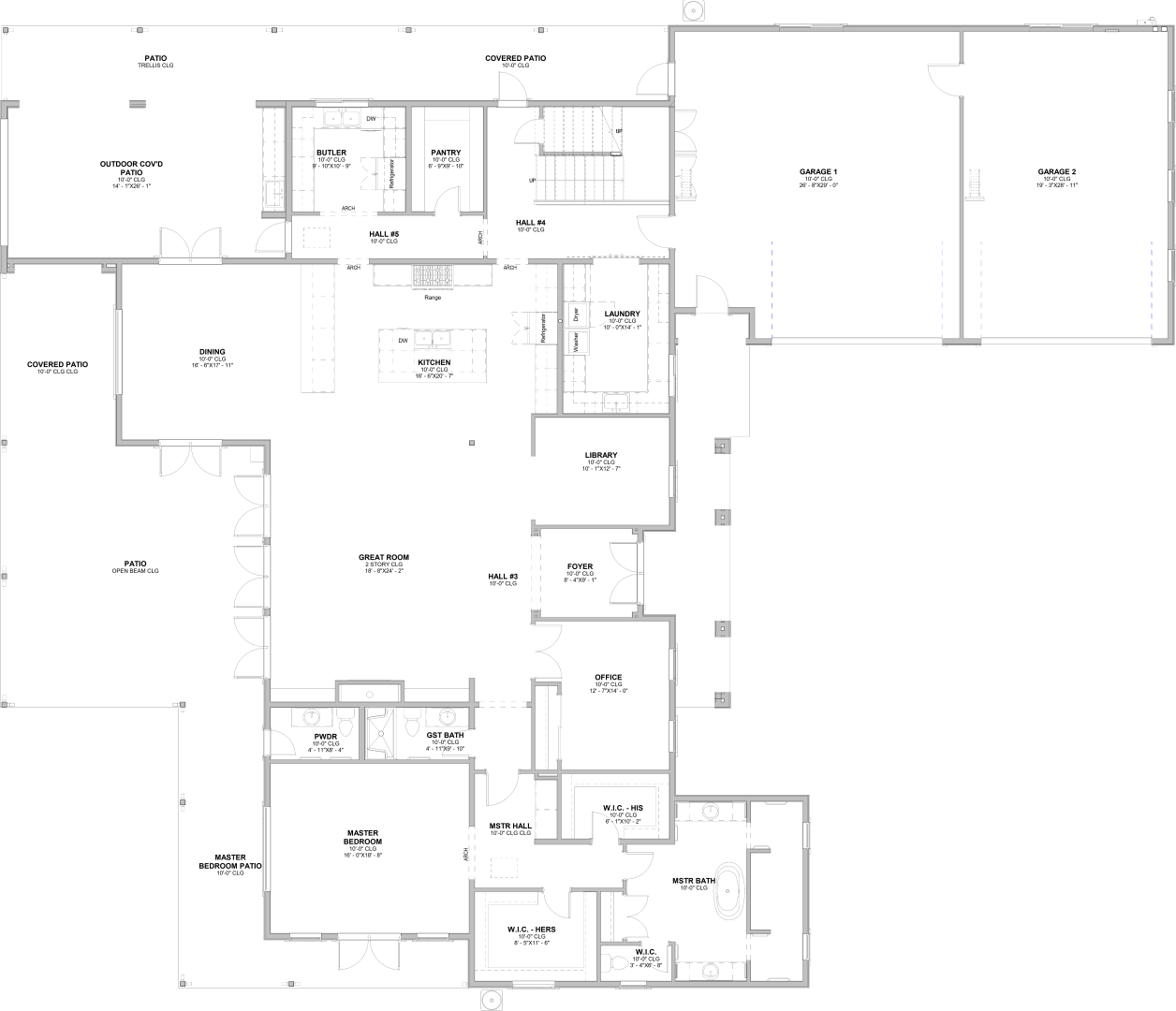

Inside, the dramatic two-story great room anchors an expansive main level built for both everyday living and entertaining. The open kitchen includes a large island, generous cabinetry, a walk-in pantry, and a separate butler’s pantry connecting the kitchen and formal dining room.
The main-level primary suite creates a private retreat with separate his-and-hers walk-in closets, a freestanding tub, a walk-in shower, and direct access to a private patio. A separate main-level guest suite provides comfortable accommodations for extended family or overnight visitors.

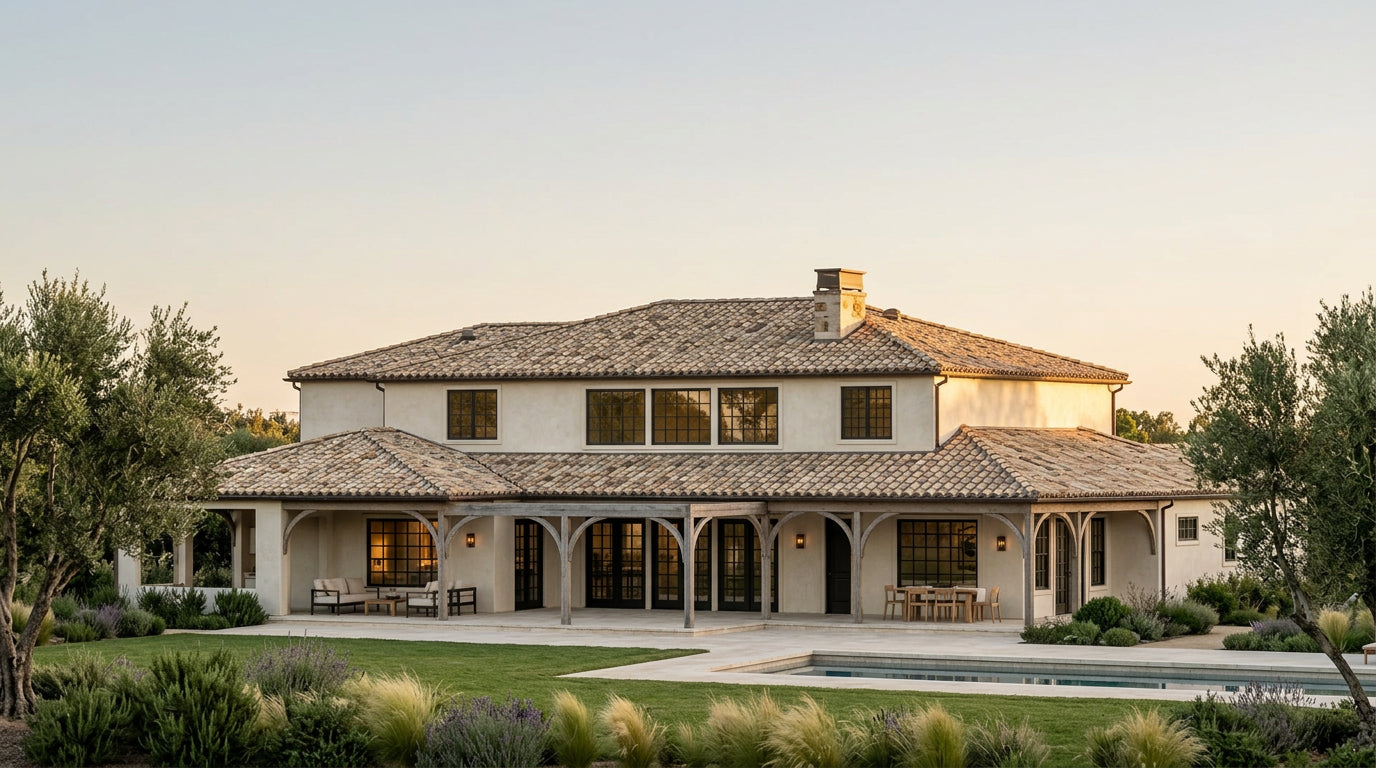

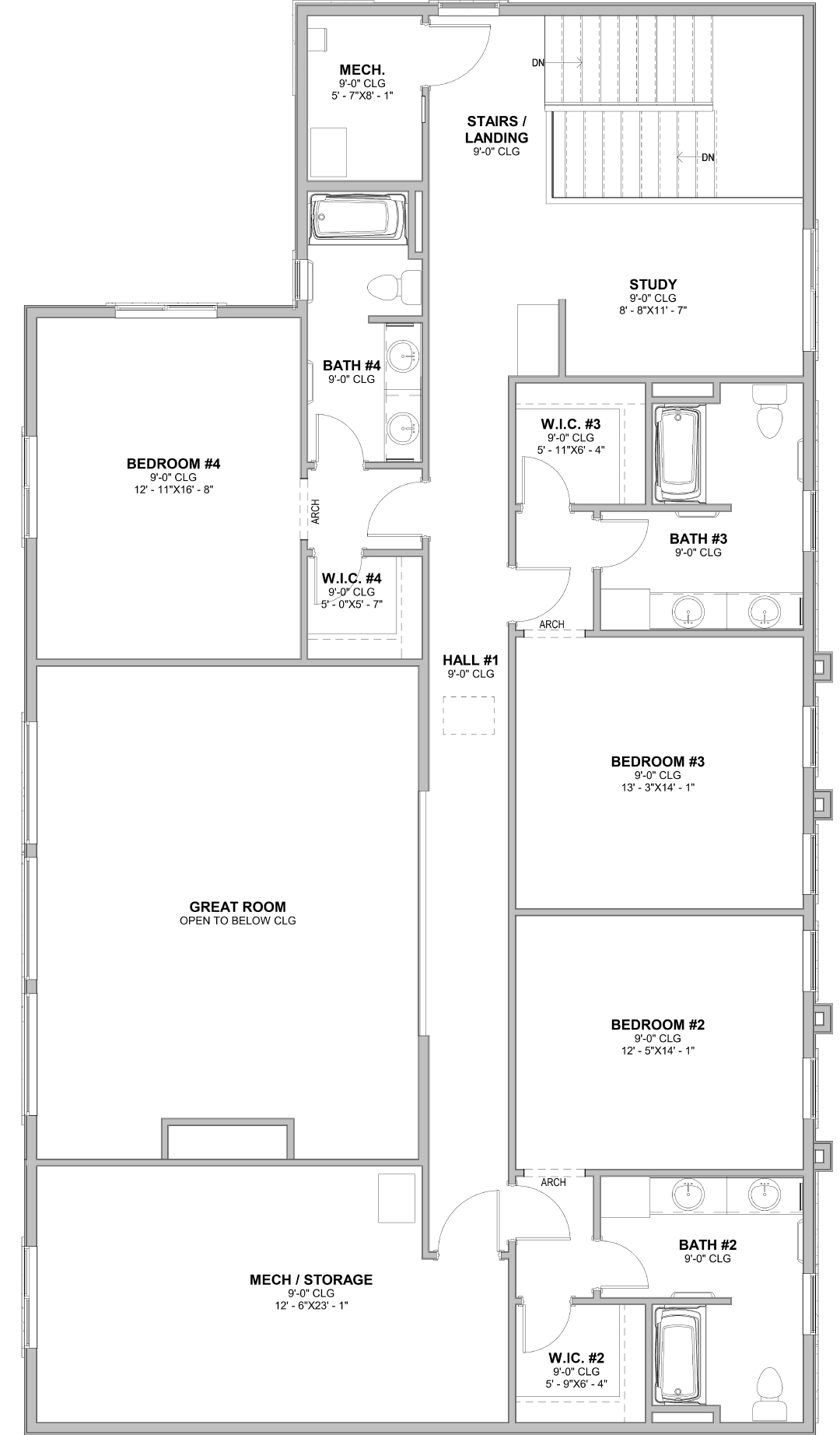

Additional spaces include a dedicated home office, library, upper-level study, oversized laundry room, multiple covered patios, and an outdoor living area. Upstairs, three secondary bedroom suites provide privacy and dedicated bathroom access while overlooking the two-story great room below.
With its substantial room sizes, extensive storage, private bedroom arrangement, four-car garage, and multiple outdoor living spaces, Plan 5482 is designed for buyers seeking a true luxury residence rather than an oversized version of a standard family home.
The stucco exterior, clay or concrete tile roofing, symmetrical massing, and repeated arches make Luxury Spanish Colonial the strongest style classification. This is not Pueblo, farmhouse, ranch, or modern mountain architecture.
⭐ Key Features
📋 Plan Specifications
📦 What is Included
Important Note
Plans may need to be reviewed, modified, engineered, or stamped by a licensed professional to meet local building department, site conditions, wind, snow, seismic, soil, and energy-code requirements.
These construction plans are intended as a technical guide for professional contractors and are not step-by-step building instructions. Local permit requirements vary by jurisdiction. Additional engineering, site plans, HVAC design, plumbing design, energy calculations, truss engineering, or other documentation may be required by your local building department or authority having jurisdiction.
Purchase includes a limited license for one-time construction use only by the original purchaser. Plans may not be copied, resold, redistributed, uploaded, shared, modified for resale, or reused for additional projects without written permission from CenterPoint Drafting, LLC.
