Plan 512
$695.00
1Beds
1.0Baths
1Floors
512Sq Ft
0Garage
16'-0"Width
38'-0"Depth
Compact Cottage Living With a Vaulted Interior and Wood-Burning Fireplace

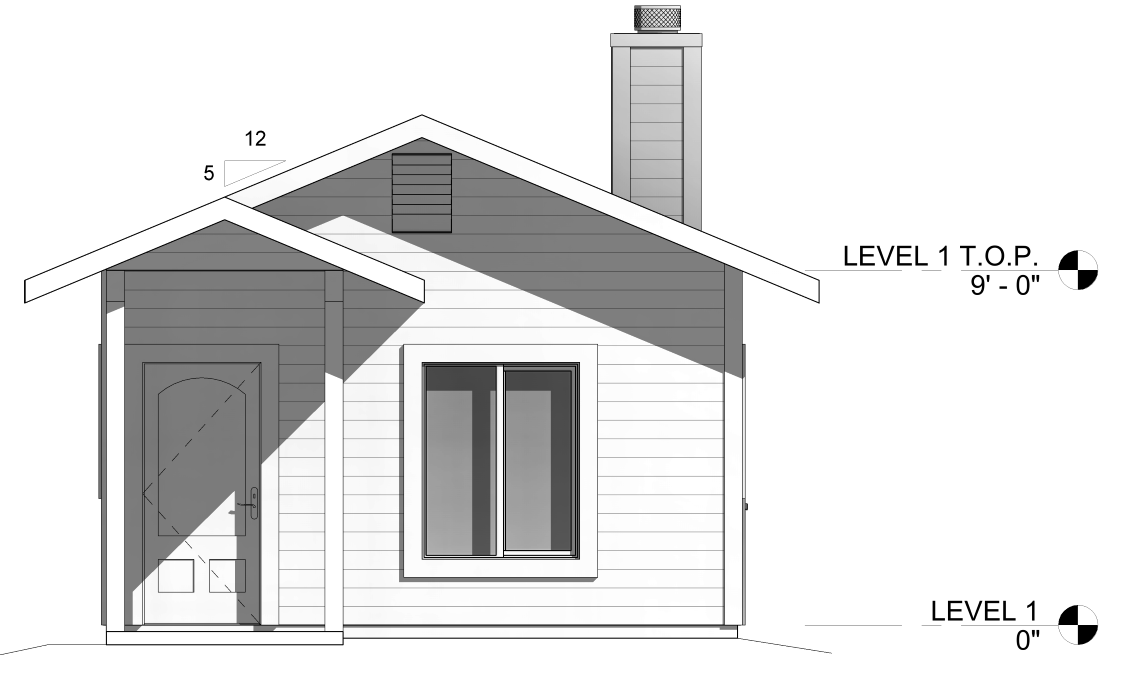

This thoughtfully designed 512-square-foot, one-bedroom cottage plan delivers a complete living experience within an efficient 16-foot-wide by 32-foot-deep footprint. Its simple rectangular form, traditional gable roof, horizontal siding, and covered front entry give the home timeless cottage character while helping keep construction straightforward and economical.

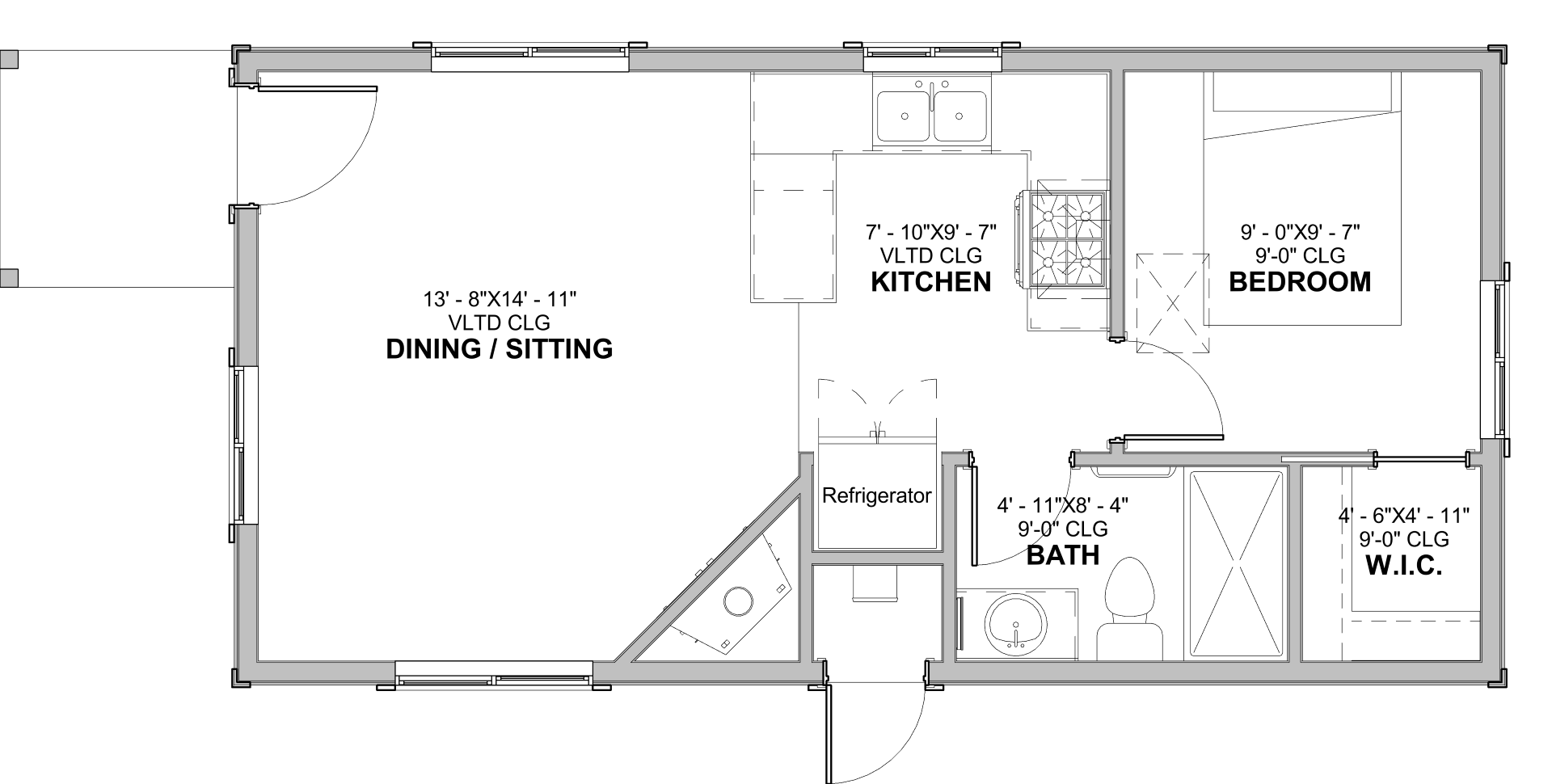

The covered porch opens into a surprisingly spacious vaulted living and dining area centered around a corner wood-burning fireplace. The adjoining vaulted kitchen provides full-size appliance spaces, ample cabinetry, and a peninsula for additional preparation, dining, and serving space.
The private rear bedroom includes a dedicated walk-in closet and convenient access to a full bathroom with a large shower. With no wasted hallway space and all living areas located on one level, this plan works well as a guest house, detached accessory dwelling unit, vacation cabin, rental cottage, starter home, or downsized residence where permitted by local regulations.

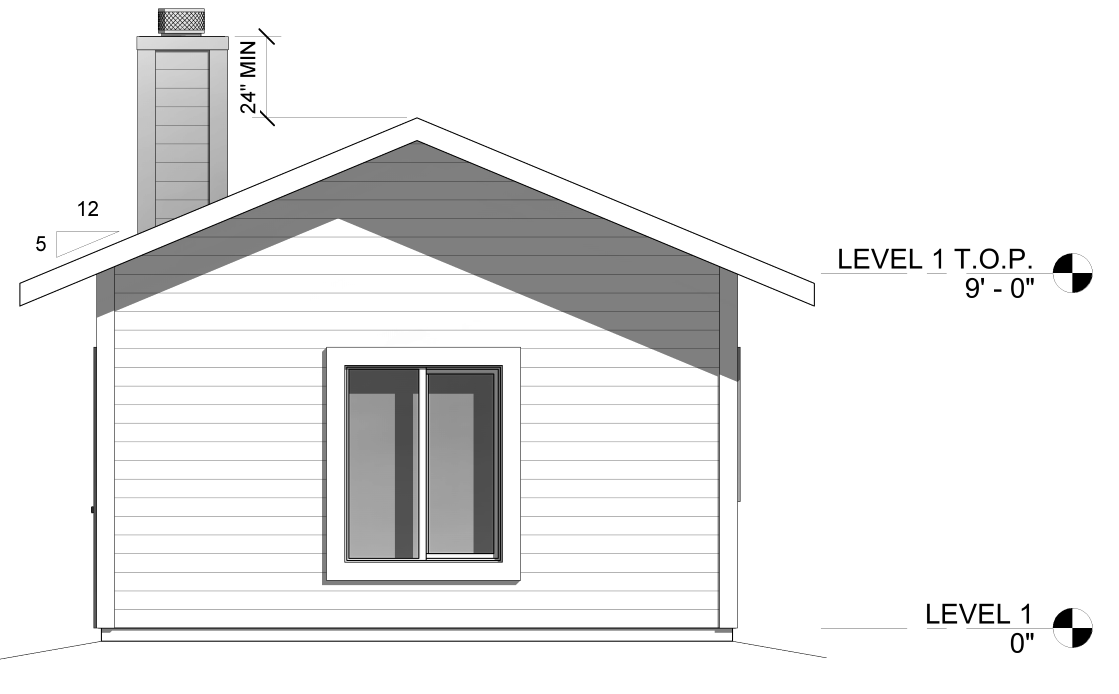

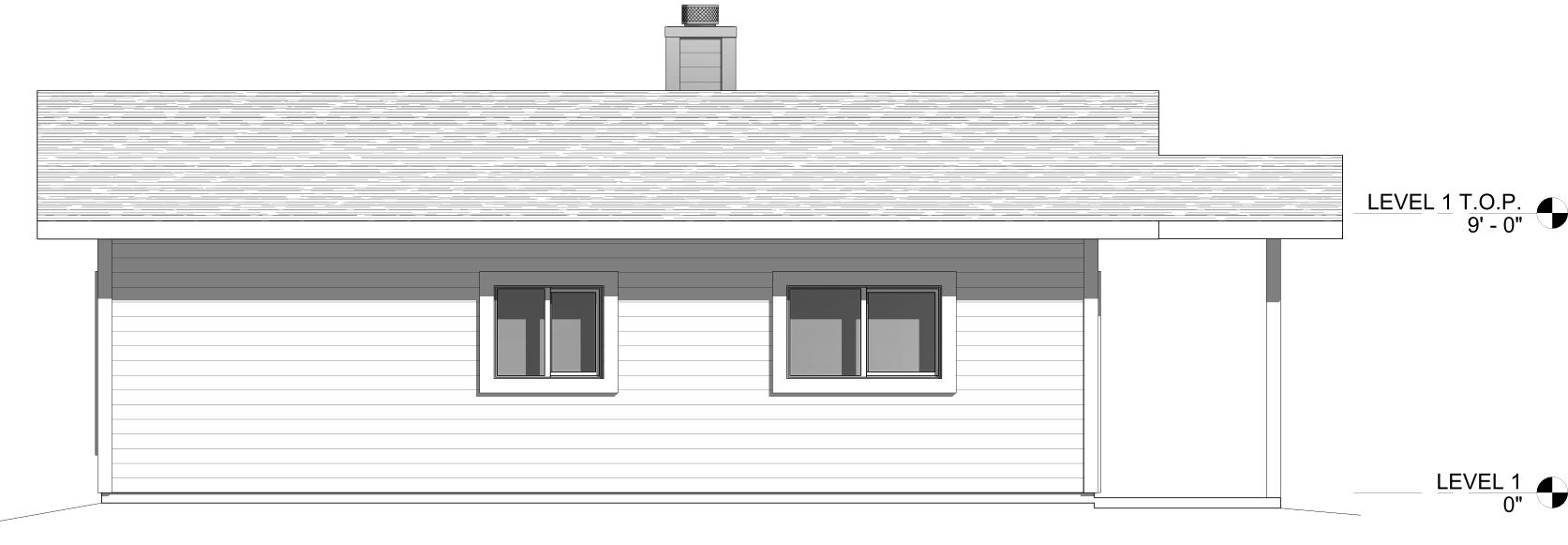

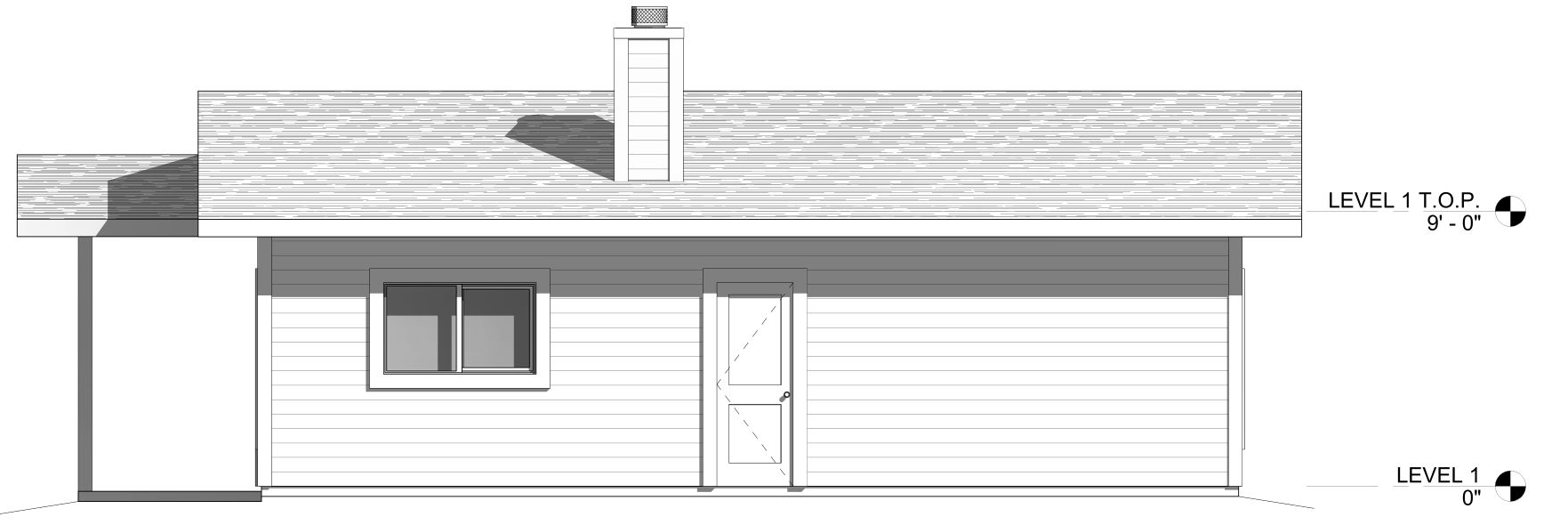

The construction package includes professionally prepared floor plans, electrical layouts, exterior elevations, building sections, foundation and roof-framing plans, structural details, schedules, and energy-code information.
⭐ Key Features
📋 Plan Specifications
📦 What is Included
Important Note
Plans may need to be reviewed, modified, engineered, or stamped by a licensed professional to meet local building department, site conditions, wind, snow, seismic, soil, and energy-code requirements.
These construction plans are intended as a technical guide for professional contractors and are not step-by-step building instructions. Local permit requirements vary by jurisdiction. Additional engineering, site plans, HVAC design, plumbing design, energy calculations, truss engineering, or other documentation may be required by your local building department or authority having jurisdiction.
Purchase includes a limited license for one-time construction use only by the original purchaser. Plans may not be copied, resold, redistributed, uploaded, shared, modified for resale, or reused for additional projects without written permission from CenterPoint Drafting, LLC.
