Plan 3447

$1,795.00

🛏3Beds

🚿4.0Baths

🏠1Floors

📐3447Sq Ft

🚗3Garage

↔️120'-2"Width

↕️72'-6"Depth

Expansive Modern Mountain Living With Exceptional Indoor-Outdoor Space

Plan 3447 is a 3,447 sq. ft. single-story Modern Mountain Craftsman Ranch designed for homeowners who want generous living spaces, private bedroom suites, dedicated work areas, and exceptional outdoor living—all without the inconvenience of a second floor.

The center of the home is an impressive open-concept living area anchored by a vaulted great room, spacious kitchen with a large island, casual dining nook, and separate formal dining room. Multiple oversized doors connect the interior to an extensive collection of covered patios, creating a natural flow for entertaining and everyday living.

A privately positioned primary suite includes a coffered-ceiling bedroom, large walk-in closet, luxurious bathroom, and direct access to its own covered patio. On the opposite side of the home, Bedrooms 2 and 3 each feature a walk-in closet and dedicated bathroom, giving family members or overnight guests significantly more privacy than a typical secondary-bedroom layout.

A dedicated office, large flex room, walk-in pantry, spacious laundry room, dog-wash station, additional storage, and an oversized three-car garage make this plan highly functional for modern family life.

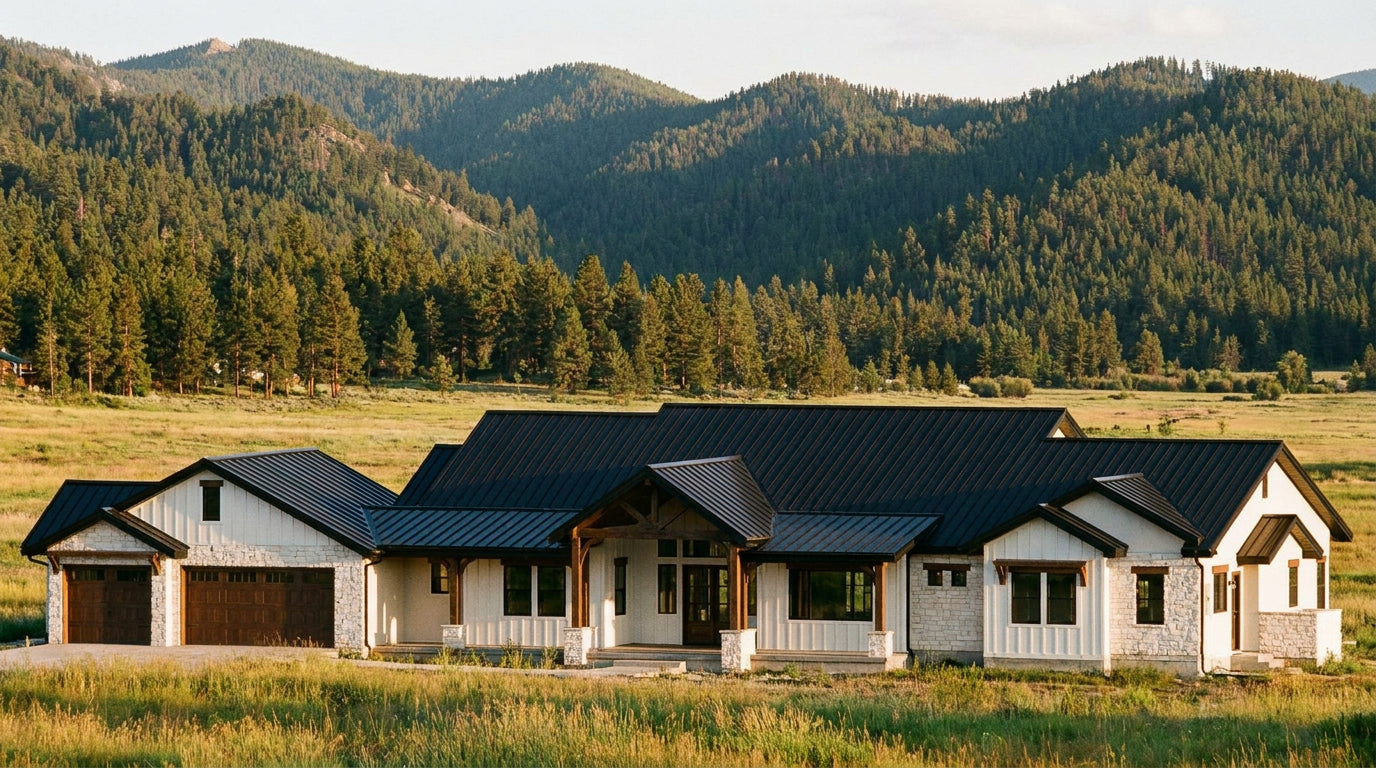

The exterior combines stucco, stone veneer, board-and-batten siding, exposed timber accents, and standing-seam metal roofing for a substantial Modern Mountain appearance with strong Craftsman and ranch influences.

Do not market this plan as a Modern Farmhouse. The stone, stucco, heavy timber detailing, broad single-story footprint, and mountain-inspired roof design place it much more accurately in the Modern Mountain, Rustic Craftsman, and Luxury Ranch categories.

⭐ Key Features

Key Features

Expansive single-story, main-level-living design
Split-bedroom floor plan for increased privacy
Vaulted 18'-4" × 22'-9" great room
Large 14'-4" × 18'-11" kitchen with oversized island
Walk-in pantry, wall oven, built-in microwave, and wine-refrigerator location
Separate formal dining room and casual dining nook
Private primary suite with coffered ceiling
Oversized primary bathroom and walk-in closet
Private covered patio directly off the primary bedroom
Two secondary bedrooms with walk-in closets and dedicated bathrooms
Dedicated home office
Large flex room suitable for hobbies, exercise, media, or additional guest space
Full guest bathroom near the flex room
Spacious laundry room with cabinetry and dog-wash station
Additional interior storage
Oversized 943 sq. ft. attached three-car garage
1,548 sq. ft. of covered porches and patios
Large multi-panel folding door connecting the great room to the rear patio
Extensive indoor-outdoor entertaining potential
Stucco, stone, board-and-batten, timber, and metal-roof exterior palette

📋 Plan Specifications

Plan Specifications

Plan Number: 3447
Total Livable Area: 3,447 sq. ft.
Bedrooms: 3
Bathrooms: 4
Stories: 1
Garage: Attached three-car garage
Garage Area: 943 sq. ft.
Covered Porches and Patios: 1,548 sq. ft.
Approximate Overall Width: 120'-1 1/2"
Approximate Overall Depth: 59'-10"
Foundation: Slab-on-grade with concrete stem-wall construction
Typical Ceiling Height: 10'-0"
Additional Ceiling Features: Vaulted great room and entry, 12'-0" foyer, coffered primary bedroom
Primary Exterior Materials: Stucco, stone veneer, board-and-batten siding, exposed timber accents
Roofing: Standing-seam metal roofing
Architectural Style: Modern Mountain Craftsman Ranch

📦 What is Included

What Is Included

PDF — One-Time Build Package

Complete 13-sheet construction drawing set delivered electronically in PDF format
Cover sheet and project information
IECC energy specifications

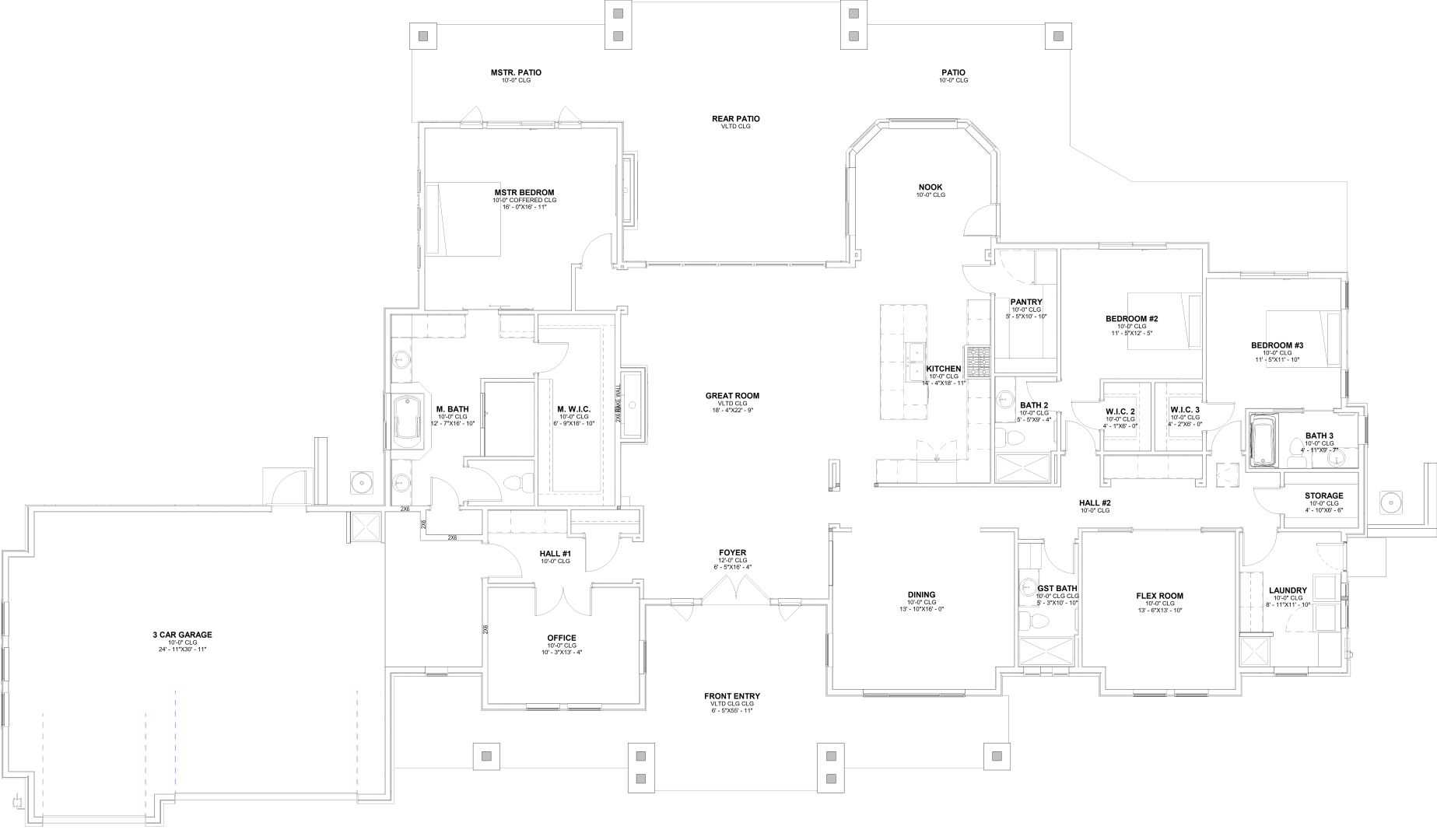

Fully dimensioned floor plan
Roof plan

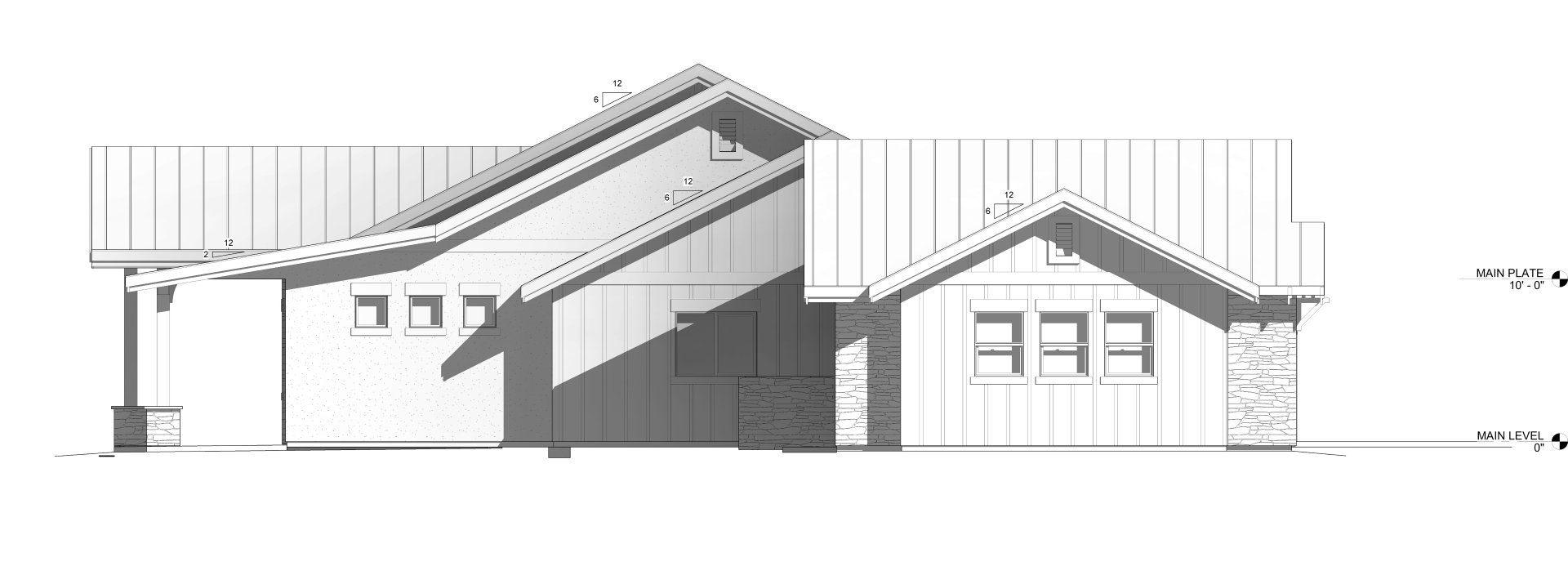

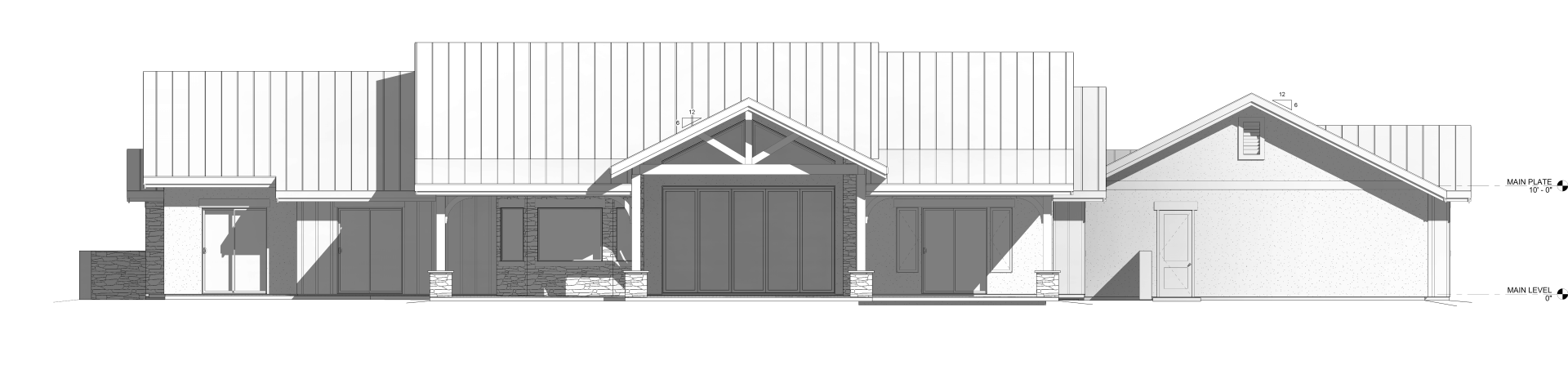

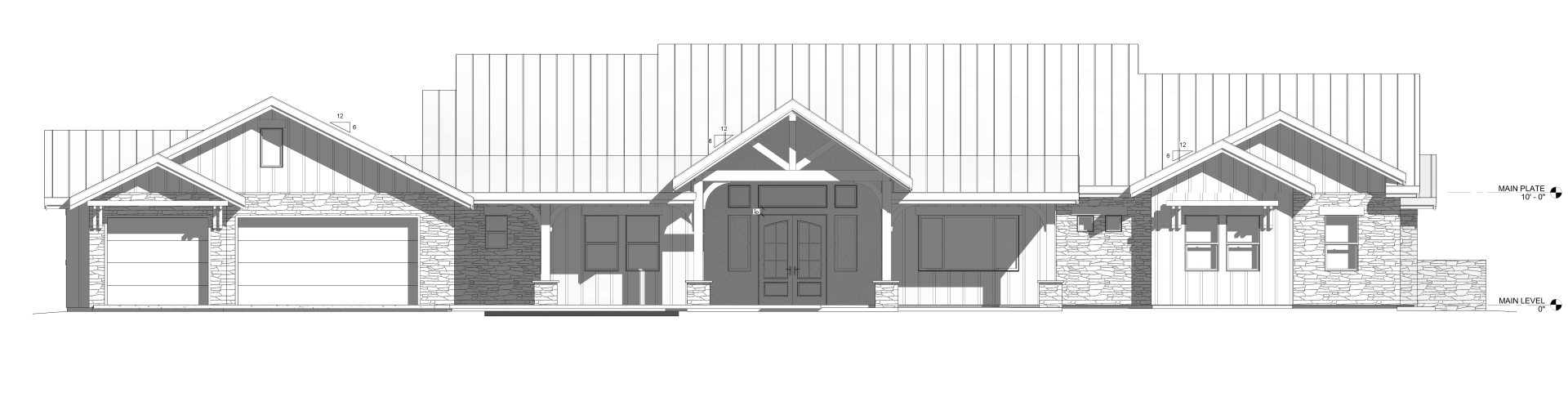

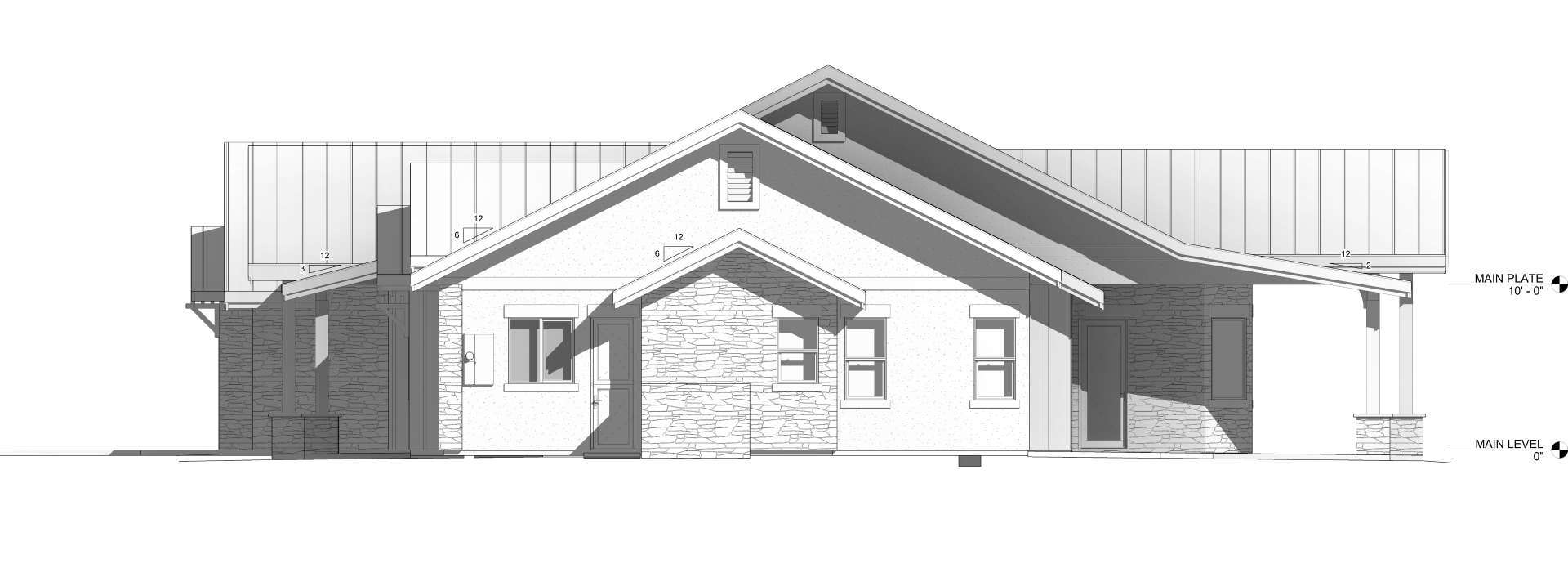

Four exterior elevations
Building cross sections
Electrical and lighting plan
Foundation plan
Roof-framing plan
Structural and construction details
Door and window schedules
General construction notes and specifications
License to construct one home only

PDF + CAD — One-Time Build Package

Includes everything in the PDF package, plus:

Editable CAD drawing files for professional modification
Greater flexibility for site-specific revisions
Easier coordination with builders, engineers, architects, and local drafting professionals
License to construct one home only

Important Note
Plans may need to be reviewed, modified, engineered, or stamped by a licensed professional to meet local building department, site conditions, wind, snow, seismic, soil, and energy-code requirements.

These construction plans are intended as a technical guide for professional contractors and are not step-by-step building instructions. Local permit requirements vary by jurisdiction. Additional engineering, site plans, HVAC design, plumbing design, energy calculations, truss engineering, or other documentation may be required by your local building department or authority having jurisdiction.

Purchase includes a limited license for one-time construction use only by the original purchaser. Plans may not be copied, resold, redistributed, uploaded, shared, modified for resale, or reused for additional projects without written permission from CenterPoint Drafting, LLC.
