Plan 2560

$1,495.00

🛏4Beds

🚿3.0Baths

🏠2Floors

📐2560Sq Ft

🚗3Garage

↔️103'-0"Width

↕️40'-6"Depth

Modern Mediterranean Character With a Main-Level Guest Suite and an Oversized 3-Car Garage

Plan 2560 combines clean modern design with warm Mediterranean influences, including a stucco exterior, tile roofing, standing-seam metal accents, exposed timber details, shutters, and a welcoming covered front porch.

Inside, the open main level centers around a vaulted living room with a fireplace, a spacious kitchen with a large island, a dedicated dining area, and an oversized walk-in pantry. A private main-level guest bedroom and full bathroom provide comfortable accommodations for visitors, extended family, or multigenerational living.

Upstairs, the primary suite includes a private bathroom and walk-in closet, while two additional bedrooms share a thoughtfully divided secondary bathroom. The exceptionally deep 1,107-square-foot attached garage provides parking for three vehicles along with valuable room for storage, equipment, or a workshop.

At approximately 103 feet wide and only 37 feet deep, this plan is particularly well suited for a wide, shallow building lot.

⭐ Key Features

Key Features

Distinctive modern Mediterranean exterior
Stucco walls with tile and standing-seam metal roofing
Covered front porch with exposed timber columns
Open-concept kitchen, dining, and living areas
Vaulted living room with fireplace
Large kitchen island
Oversized walk-in pantry
Main-level guest bedroom and full bathroom
Private upper-level primary suite
Primary bathroom with custom shower
Primary walk-in closet
Two additional upper-level bedrooms
Divided secondary bathroom for improved functionality
Large dedicated laundry room
Two-story entry and stairwell
Three separate garage doors
Deep 1,107-square-foot garage with storage or workshop potential
Wide, shallow footprint suited to wider building sites

📋 Plan Specifications

Plan Specifications

Plan Number: 2560
Architectural Style: Modern Mediterranean / Spanish-Inspired
Total Living Area: 2,560 sq. ft.
Main-Level Living Area: 1,670 sq. ft.
Upper-Level Living Area: 890 sq. ft.
Bedrooms: 4
Bathrooms: 3
Stories: 2
Garage: 1,107 sq. ft. attached 3-car garage
Covered Front Porch: 270 sq. ft.
Overall Width: Approximately 103'-0"
Overall Depth: Approximately 37'-5"
Foundation: Slab-on-grade
Primary Bedroom Location: Upper level
Guest Bedroom: Main level
Main-Level Ceiling Height: Predominantly 9'-0"
Upper-Level Ceiling Height: Predominantly 9'-0"
Special Ceiling Features: Vaulted living room and two-story stairwell

📦 What is Included

What Is Included

PDF Single-Build Package

A complete 19-sheet digital construction drawing set, including:

Cover sheet and project information
I.E.C.C. specifications
Typical construction details

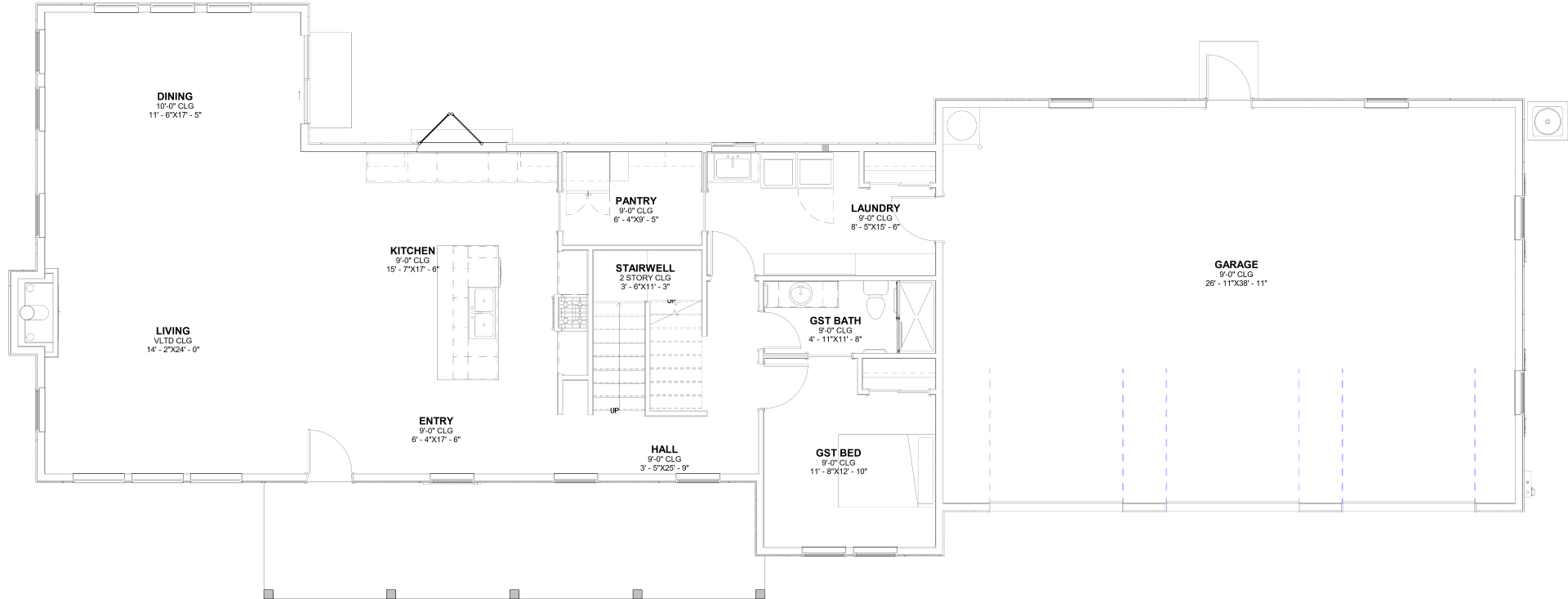

Fully dimensioned main-level floor plan

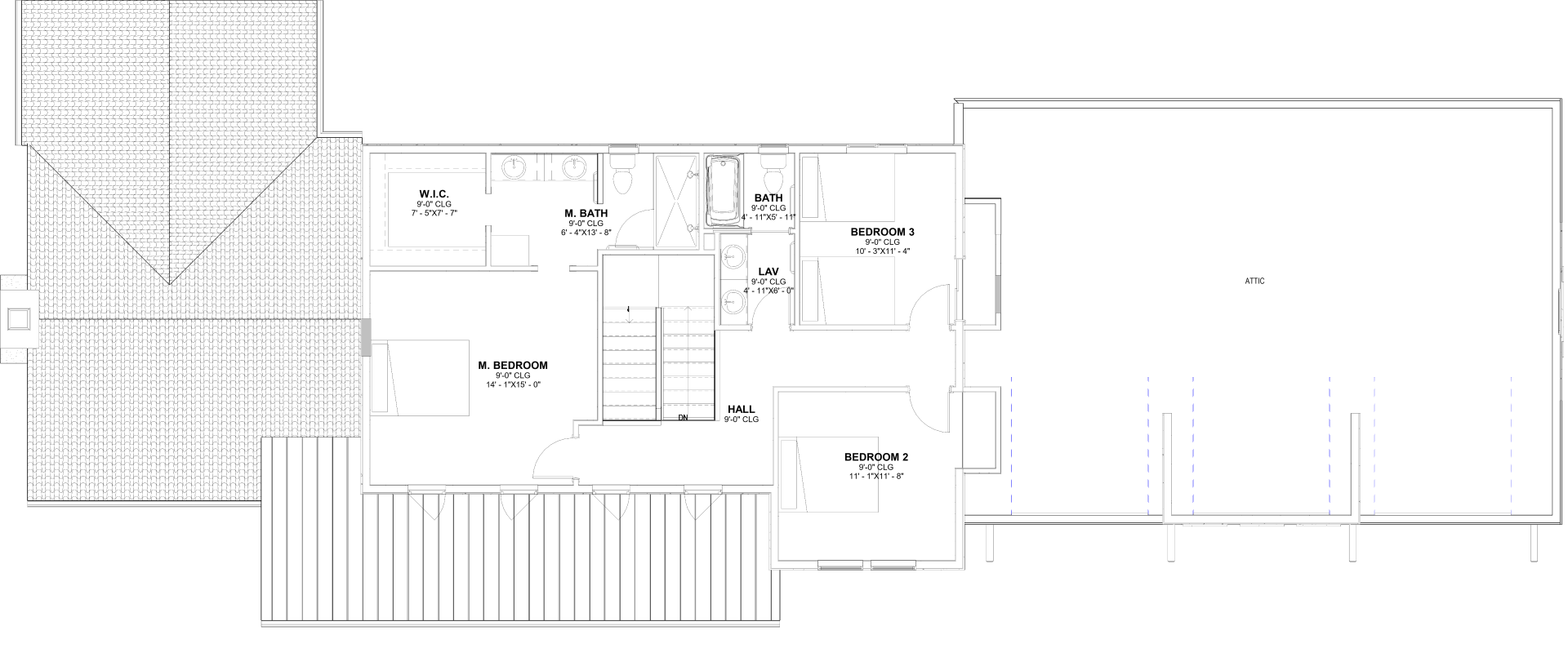

Fully dimensioned upper-level floor plan
Roof plan

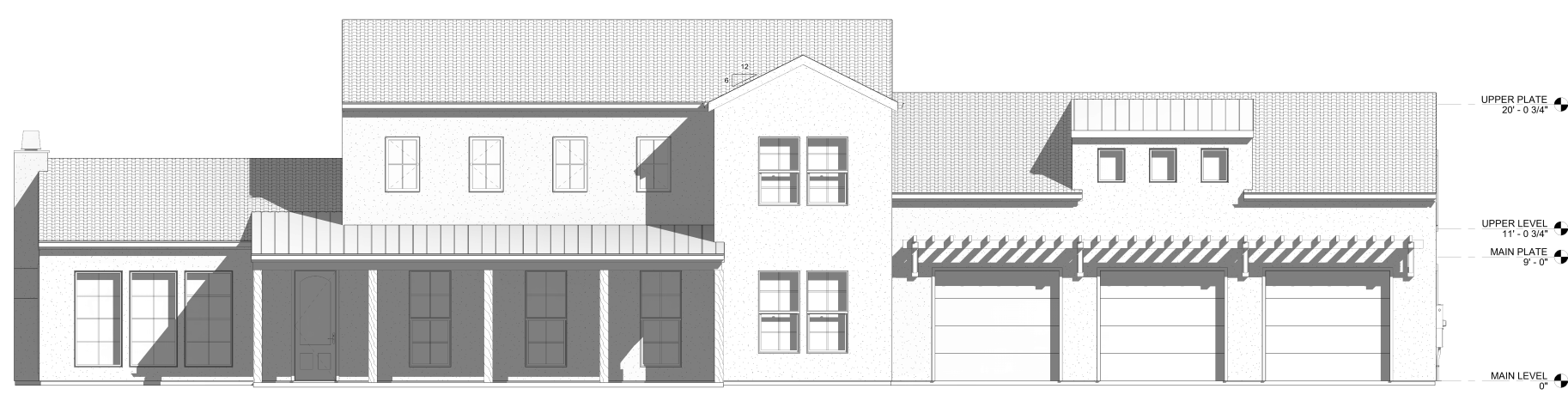

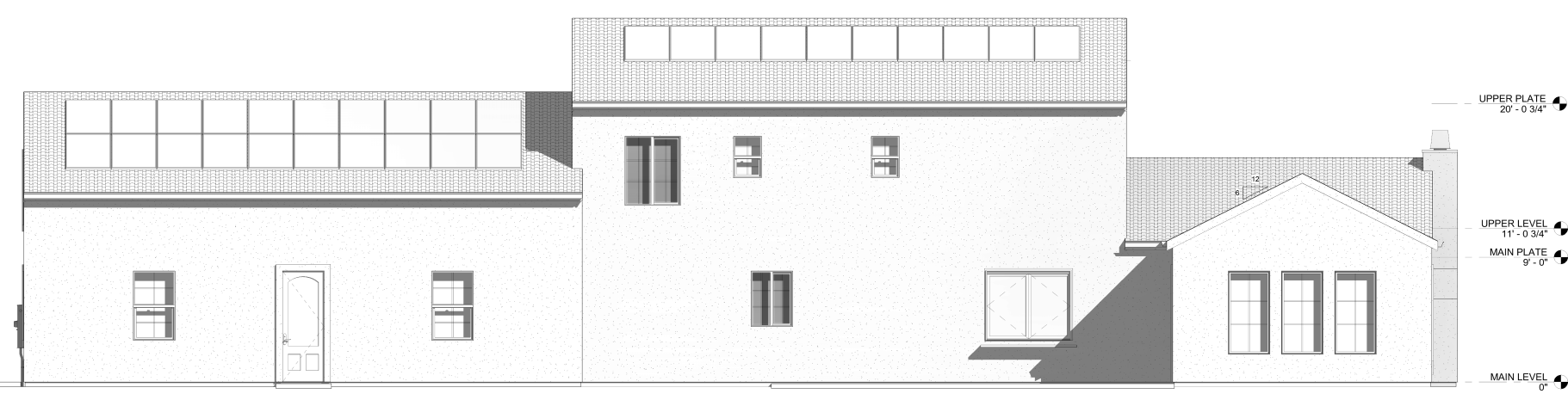

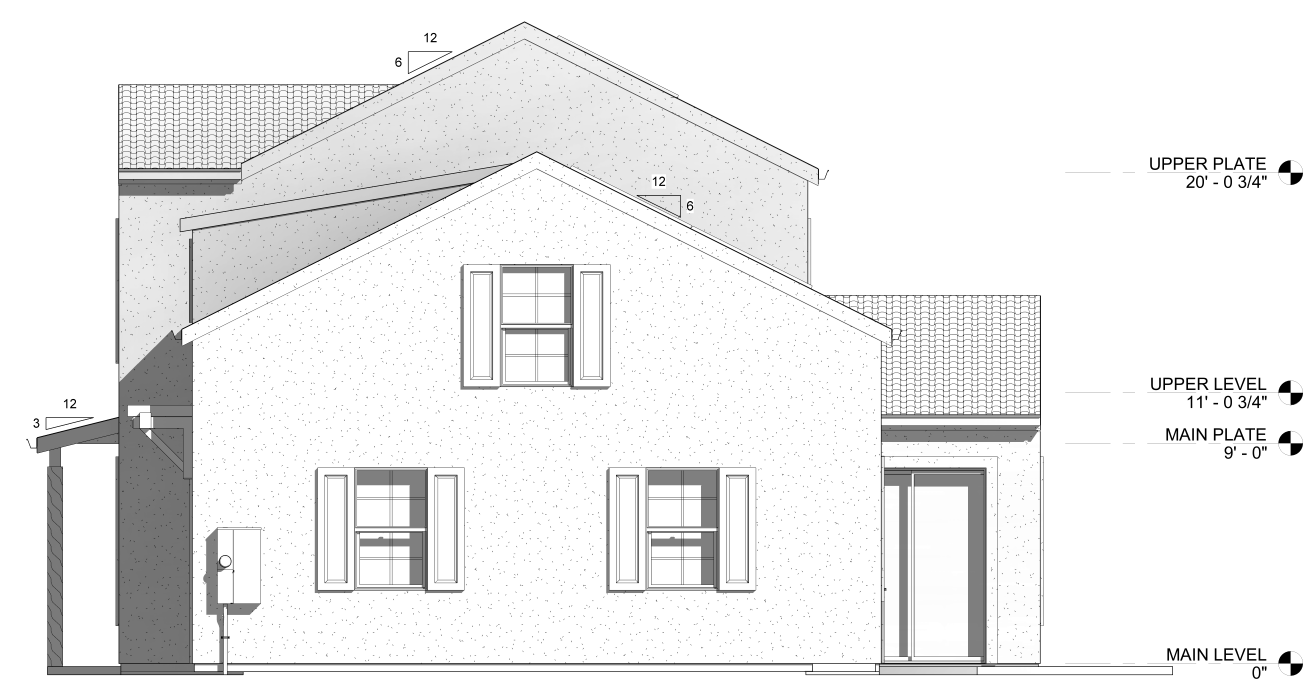

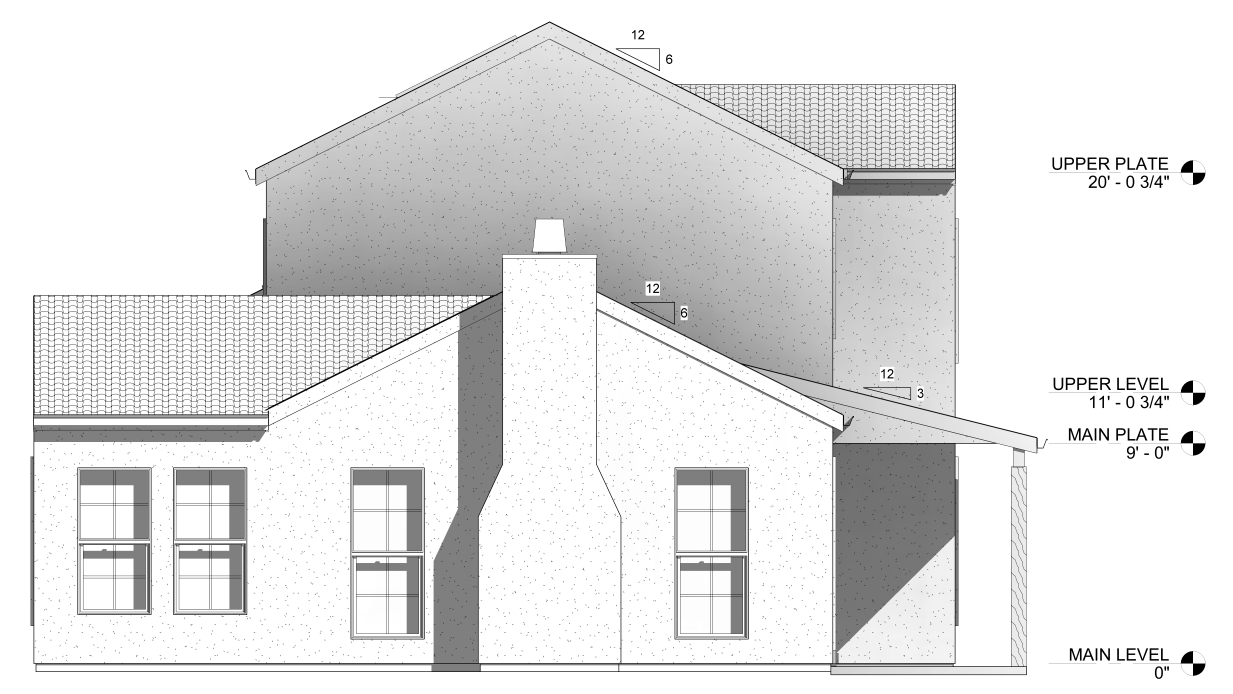

Front, rear, left, and right exterior elevations
Building cross sections
Main-level electrical and lighting plan
Upper-level electrical and lighting plan
Foundation plan
Floor-framing and lower-roof-framing plan
Upper-roof-framing plan
Structural foundation and framing details
Door and window schedules
Construction notes and specifications
One-time construction license

PDF + CAD Single-Build Package

Includes the complete PDF construction drawing set plus the editable CAD drawing files.

Important Note
Plans may need to be reviewed, modified, engineered, or stamped by a licensed professional to meet local building department, site conditions, wind, snow, seismic, soil, and energy-code requirements.

These construction plans are intended as a technical guide for professional contractors and are not step-by-step building instructions. Local permit requirements vary by jurisdiction. Additional engineering, site plans, HVAC design, plumbing design, energy calculations, truss engineering, or other documentation may be required by your local building department or authority having jurisdiction.

Purchase includes a limited license for one-time construction use only by the original purchaser. Plans may not be copied, resold, redistributed, uploaded, shared, modified for resale, or reused for additional projects without written permission from CenterPoint Drafting, LLC.
